C100 single-arm 360° Brushless car wash machine

C100 single-arm 360° Brushless car wash machine

查看完整详细信息

Product Description

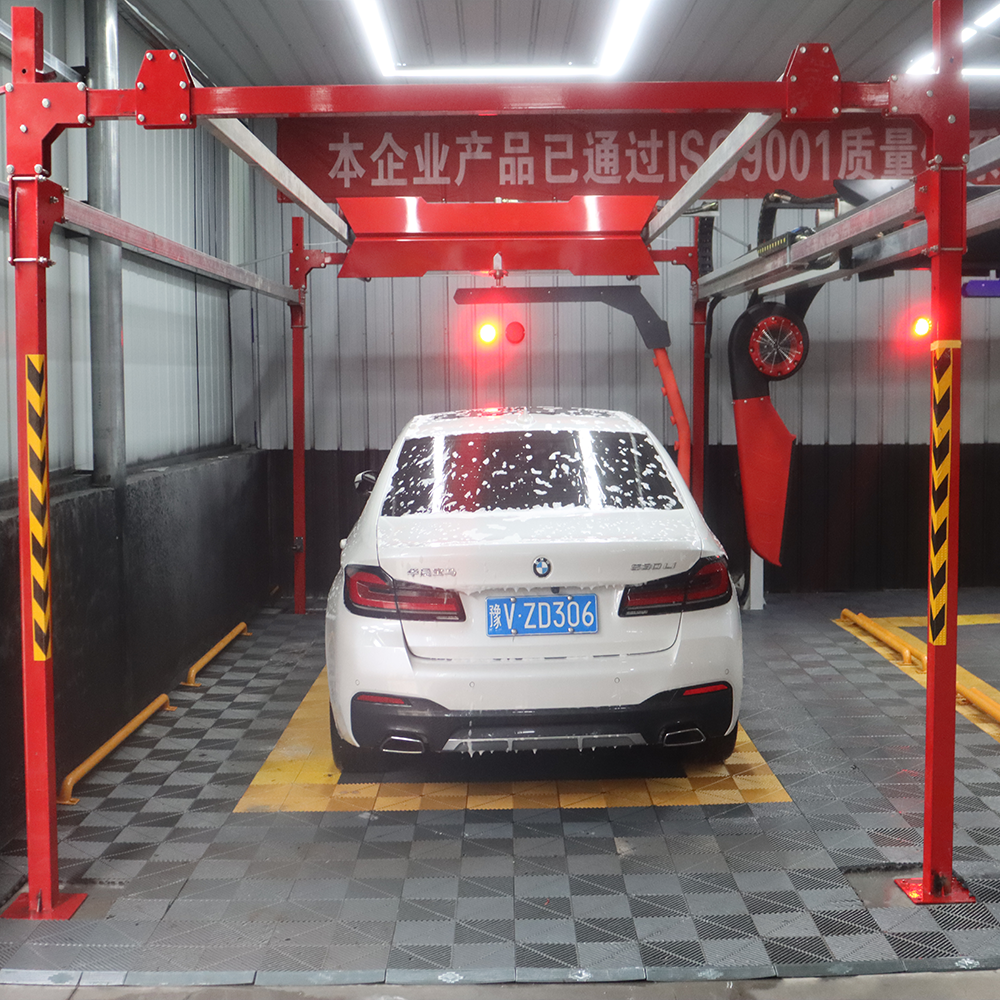

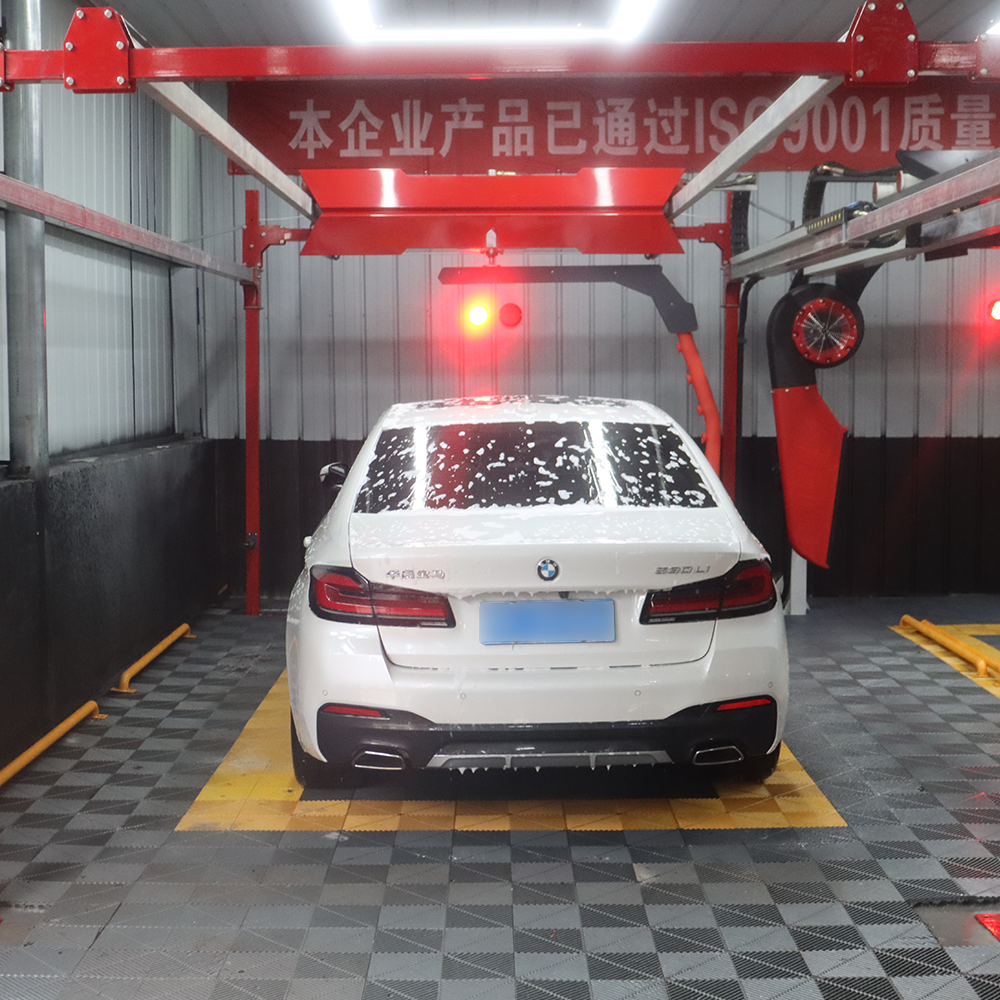

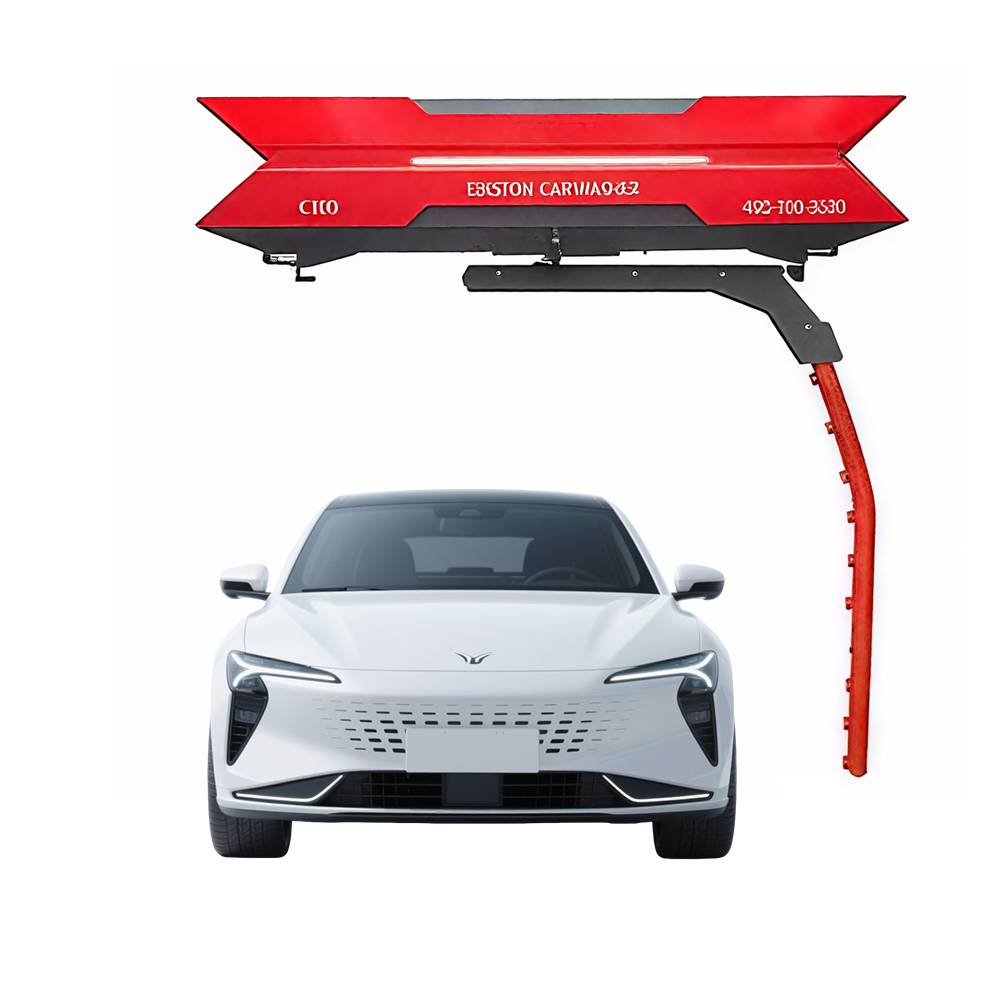

C100 single-arm 360° Brushless car wash machine

This is a modern car washing system that integrates efficiency, safety, and environmental friendliness. Its core design features a unique single-arm structure equipped with high-pressure spray jets and brushless washing modules.

During the wash cycle, this robotic arm rotates 360 degrees around the stationary vehicle. Guided by precise sensors and an intelligent control system, it consistently maintains the optimal distance from the car's contours. This ensures a thorough and uniform cleaning of the entire vehicle exterior—including the roof, sides, front, and rear—with no blind spots.

Specification

Name

Values

Size

0.6m*2.4m*0.5m

Installation Size

8.0m×3.5m×3.0m

Wash Size

5.5m×2.1m×2.0m

Power

6.5KW

Motor wattage

0.37KW

Main/Axiliary pumps

5.5KW/0.25KW

Wsh time

120s

Rtio system

Hgh-precision metering pump

Pston pump pressure

40-50 bar

Water consumption

130L about

Power consumption

0.12kWh/vehicle

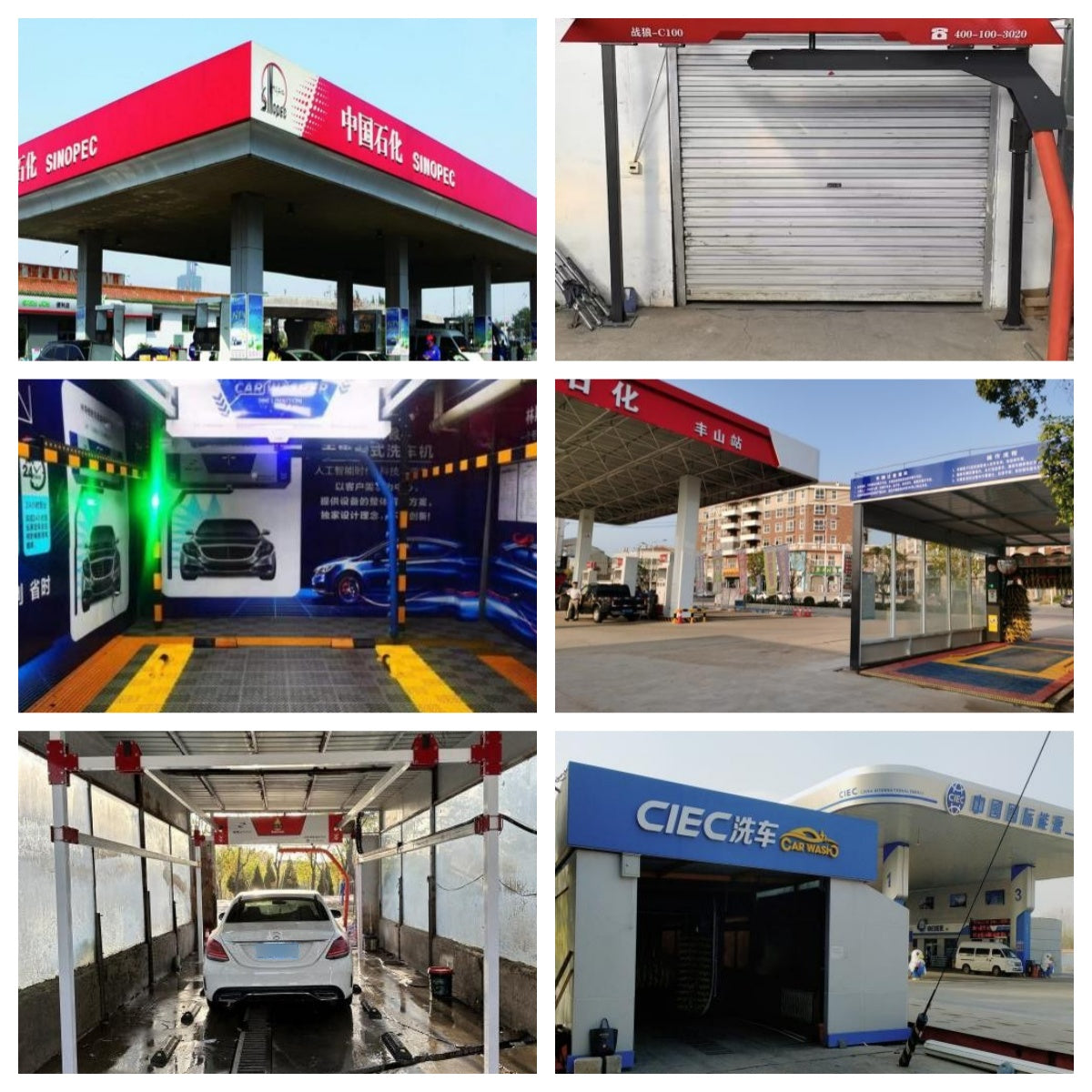

Case

Application
