Automatic 5 Brushes Car Washing Machine (Red)

Automatic 5 Brushes Car Washing Machine (Red)

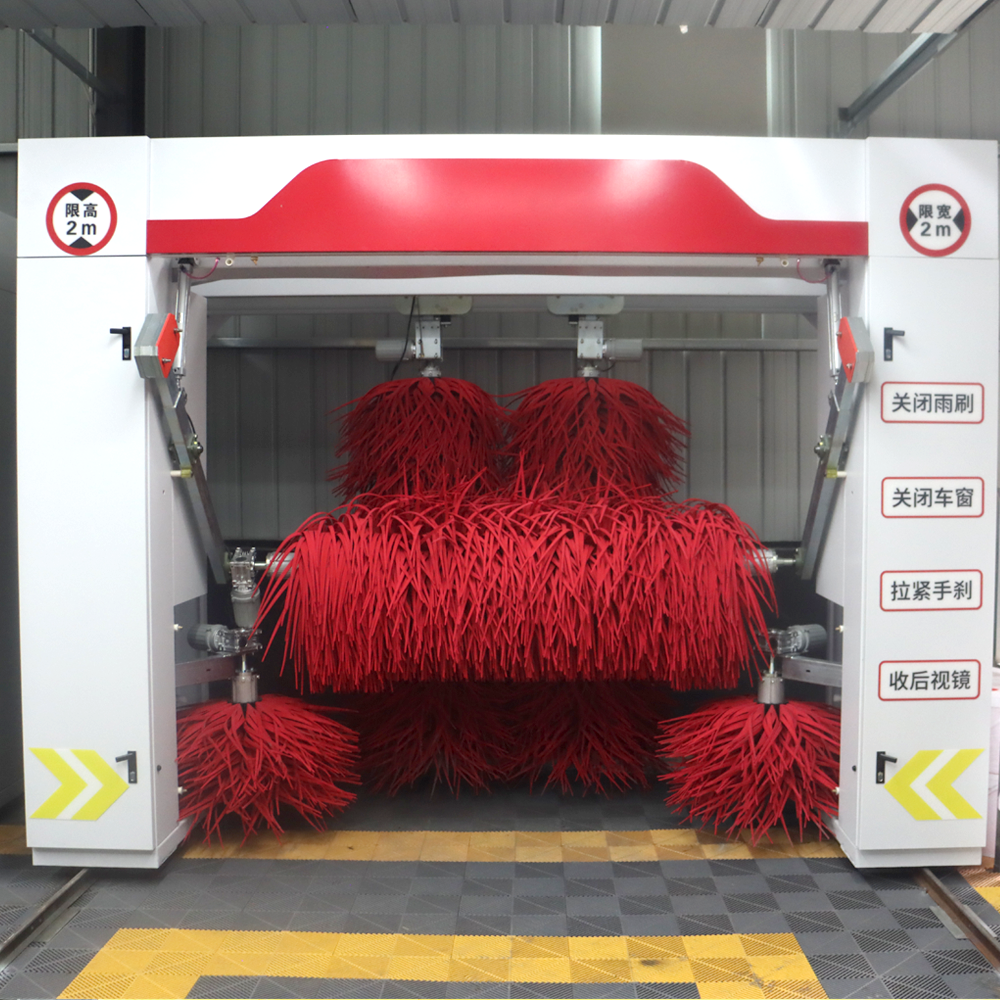

The 5-brush fully automatic car wash machine utilizes five sets of high-density soft brushes working in tandem. Equipped with an intelligent sensing system that automatically identifies the vehicle model and adjusts the cleaning intensity, achieving a 360-degree clean without blind spots. The machine utilizes industrial-grade configurations, boasting efficient water conservation (using only 80 liters per wash) and a rapid car wash time of 2-4 minutes per vehicle. It supports customizable systems and drying modules, making it particularly suitable for commercial locations such as gas stations, 4S dealerships, and professional car detailing shops. The product offers stable and reliable performance and is easy to operate.

查看完整详细信息

Automatic 5 Brushes Car Washing Machine(Red)

The 5-brush fully automatic car wash machine utilizes five sets of high-density soft brushes working in tandem. Equipped with an intelligent sensing system that automatically identifies the vehicle model and adjusts the cleaning intensity, achieving a 360-degree clean without blind spots. The machine utilizes industrial-grade configurations, boasting efficient water conservation (using only 80 liters per wash) and a rapid car wash time of 2-4 minutes per vehicle. It supports customizable systems and drying modules, making it particularly suitable for commercial locations such as gas stations, 4S dealerships, and professional car detailing shops. The product offers stable and reliable performance and is easy to operate.

Specification

Name

Values

Size

0.6m*2.6m*0.6m

Installation Size

8.0m×3.5m×3.0m

Wash Size

5.5m×2.1m×2.0m

Power

40KW

Motor wattage

0.75KW

Main/Axiliary pumps

11KW/0.25KW

Wsh time

350s

Rtio system

Hgh-precision metering pump3

Pston pump pressure

60-120 bar

Water consumption

150L about

Power consumption

1.2kWh/vehicle

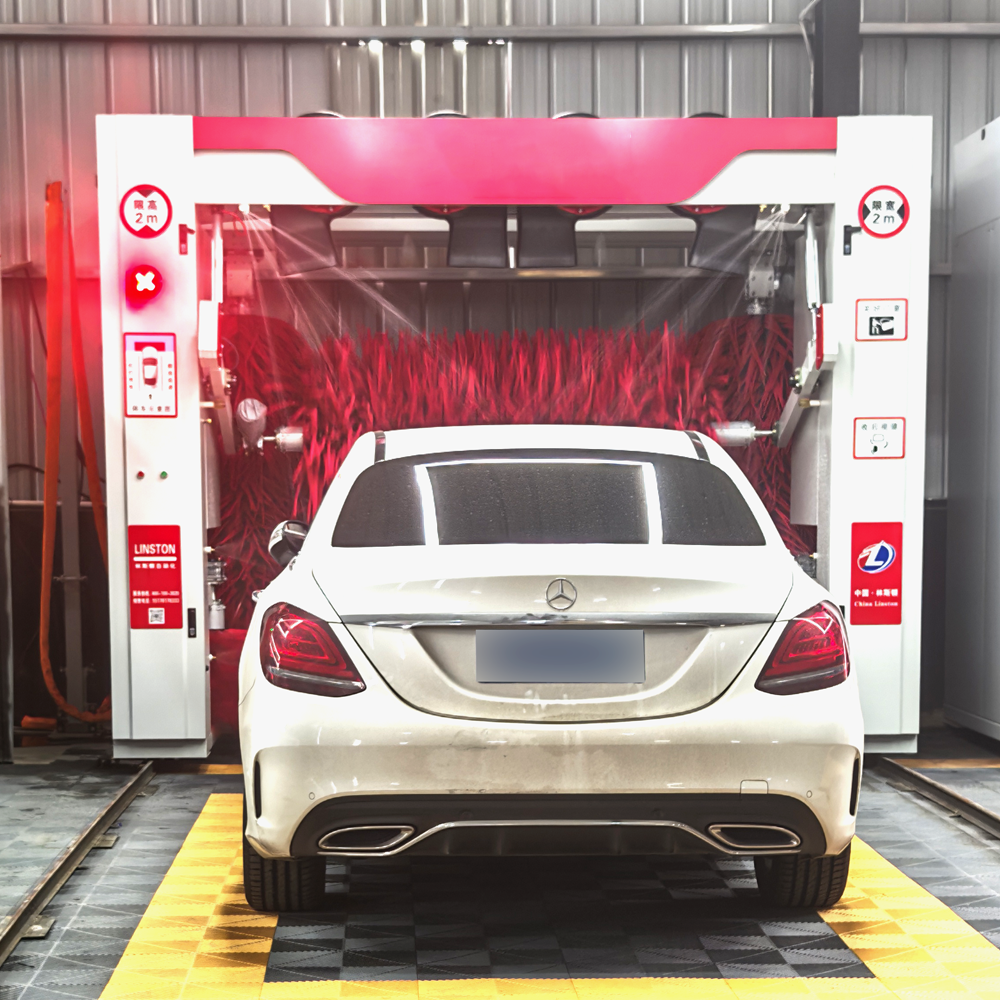

1. Drive your vehicle along the ground level from the entrance to the car wash station. The driver parks the vehicle in the designated spot (you can follow the guidance of the car washer or guide rails, and stop when the red light illuminates).
2. The car wash can only be started after the vehicle is parked correctly. Start methods include remote control, push-button start, automatic start, or unattended QR code scan start (an additional QR code payment system is required).
3. After starting, the machine enters the cleaning cycle, activating the brush cleaning system, which washes the vehicle from the front to the rear. The cleaning process begins with a spray of water and foam wax. Once the sensor detects the rear of the vehicle, the car wash begins a second wash from the rear to the front, using both the water spray and brush systems until the front of the vehicle is fully cleaned.
4. The four high-powered air drying systems then activate, drying the vehicle twice, back and forth. After the wash is complete, the driver exits the car wash station.
