Product Description

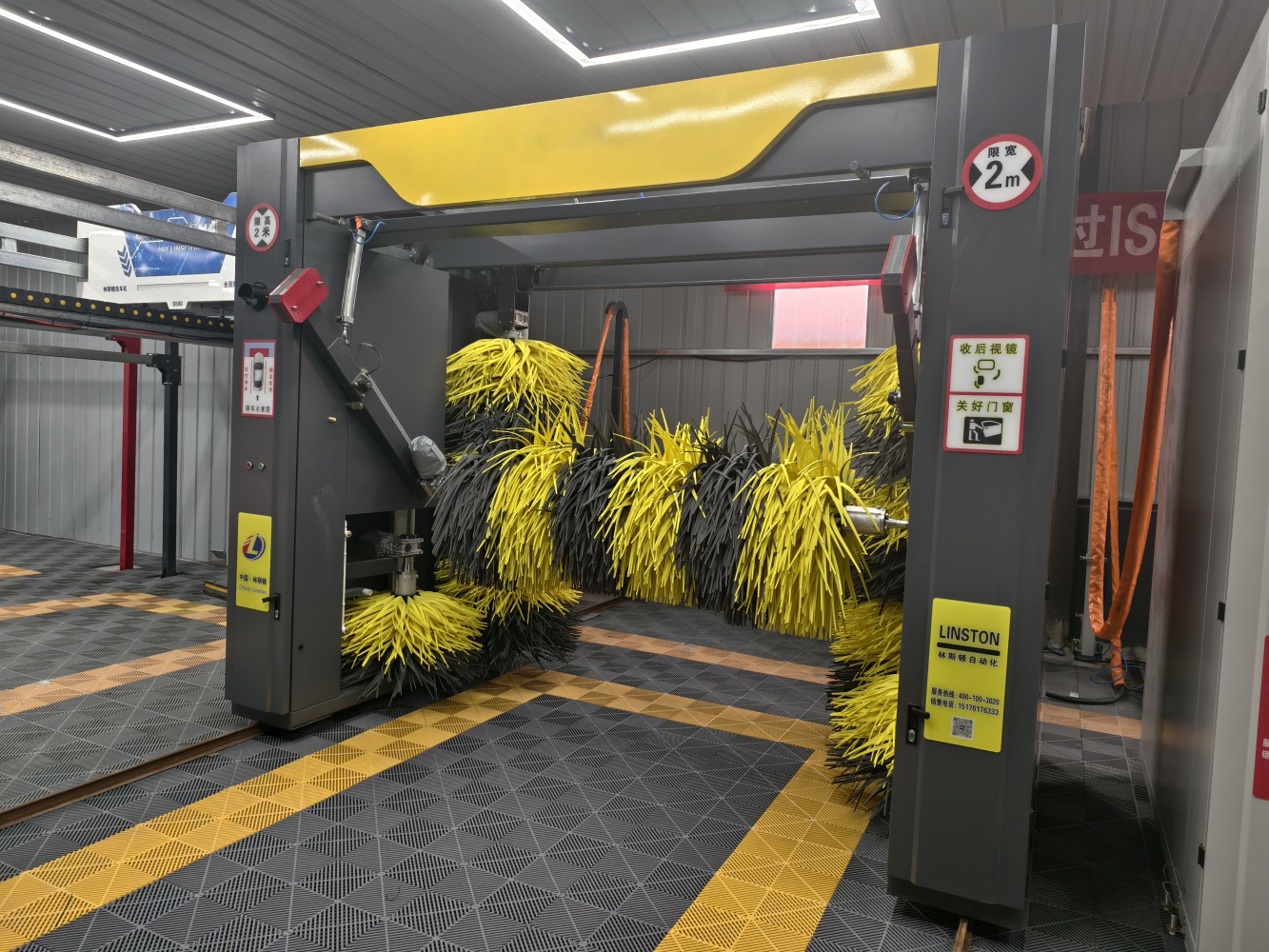

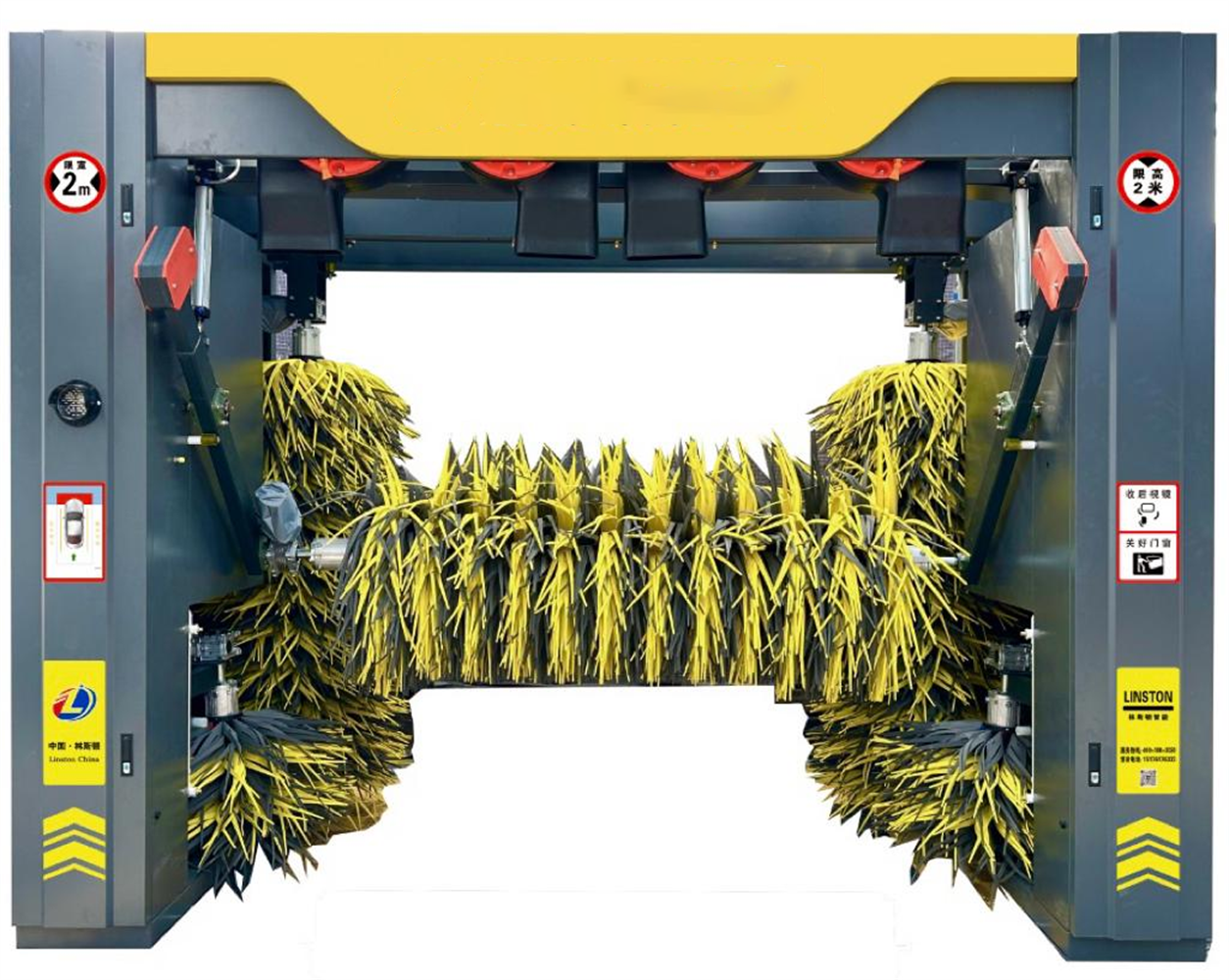

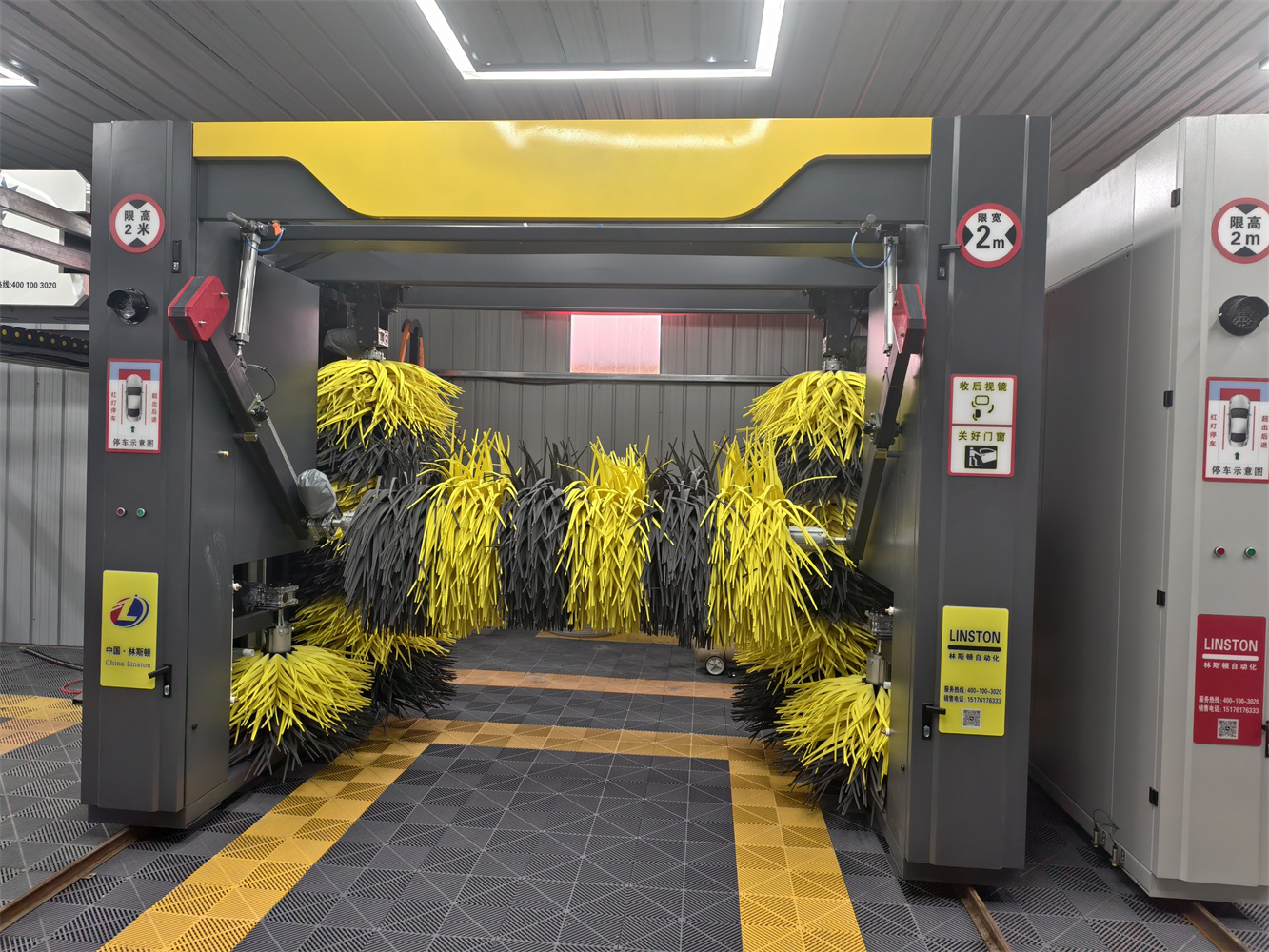

The Full System Self Service Car Wash Machinery
1. Drive your vehicle along the ground level from the entrance to the car wash station. The driver parks the vehicle in the designated spot (you can follow the guidance of the car washer or guide rails, and stop when the red light illuminates).
2. The car wash can only be started after the vehicle is parked correctly. Start methods include remote control, push-button start, automatic start, or unattended QR code scan start (an additional QR code payment system is required).
3. After starting, the machine enters the cleaning cycle, activating the brush cleaning system, which washes the vehicle from the front to the rear. The cleaning process begins with a spray of water and foam wax. Once the sensor detects the rear of the vehicle, the car wash begins a second wash from the rear to the front, using both the water spray and brush systems until the front of the vehicle is fully cleaned.
4. The four high-powered air drying systems then activate, drying the vehicle twice, back and forth. After the wash is complete, the driver exits the car wash station.
Specification
|
Machine Dimensions |
1900mm (L) * 3500mm (W) * 2800mm (H) |
|
Power Supply |
380V |
|
Installation Dimensions |
9000mm (L) * 4000mm (W) * 3000mm (H) |
|
Washing Method |
Intelligent Central Control |
|
Washing Speed |
2-4 minutes per vehicle |
|
Startup Method |
Remote Control/Button/Scan Auto Start |
|
Water Consumption |
80-100L/vehicle |
|
Power Consumption |
0.25-0.5kWh/vehicle |
|
Maximum Wash Height |
2000mm |
|
Maximum Wash Width |
2000mm |
|
Maximum Wash Length |
5300mm |
|
Washing Speed |
8.5m/min |
|
Number of Roller Brushes |
5 |

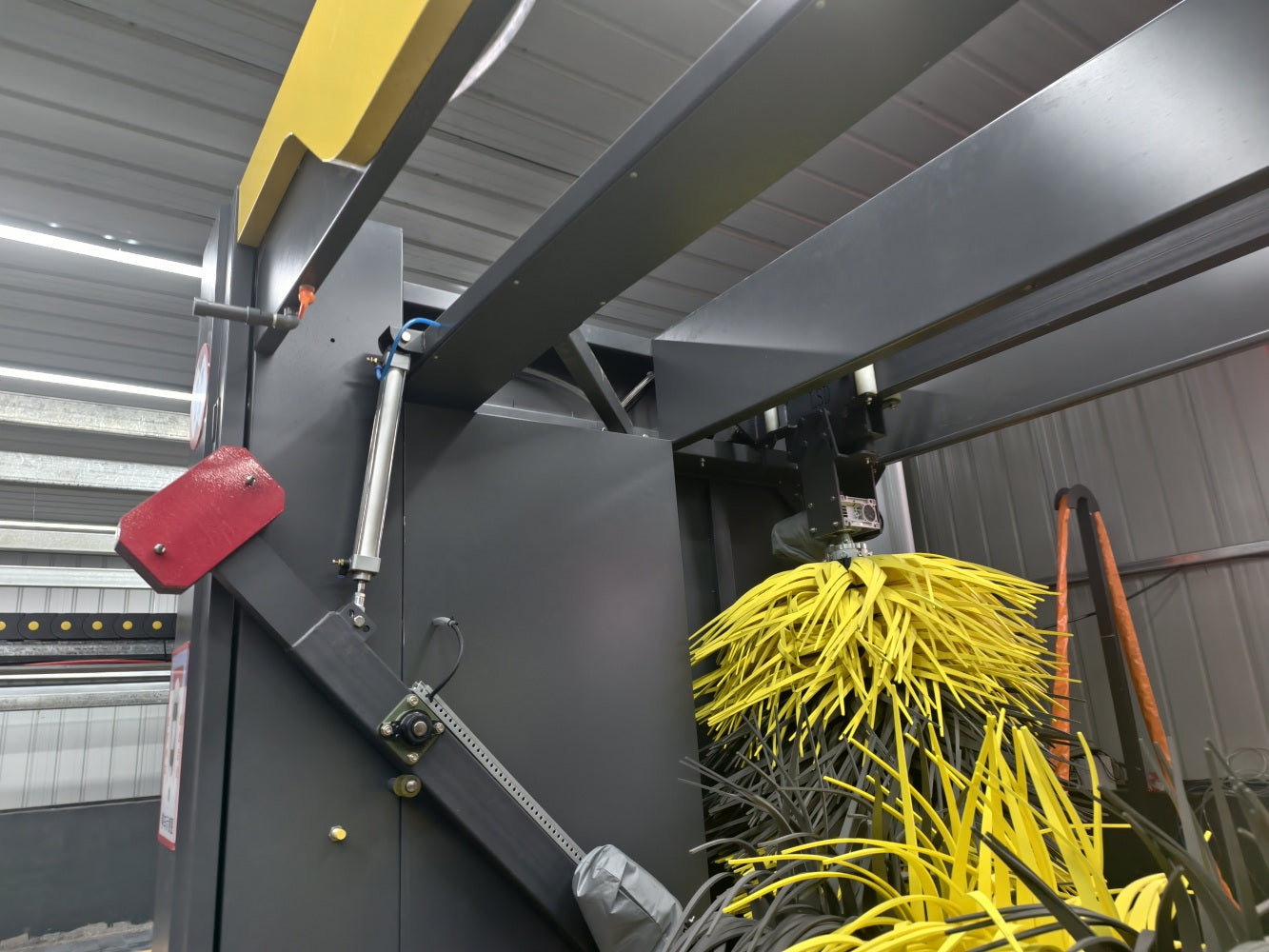

Product Details
Hot-dip galvanizing Excellent rust and corrosion resistance Available corrosion-resistant colors
Powerful contoured air knife dries 90%

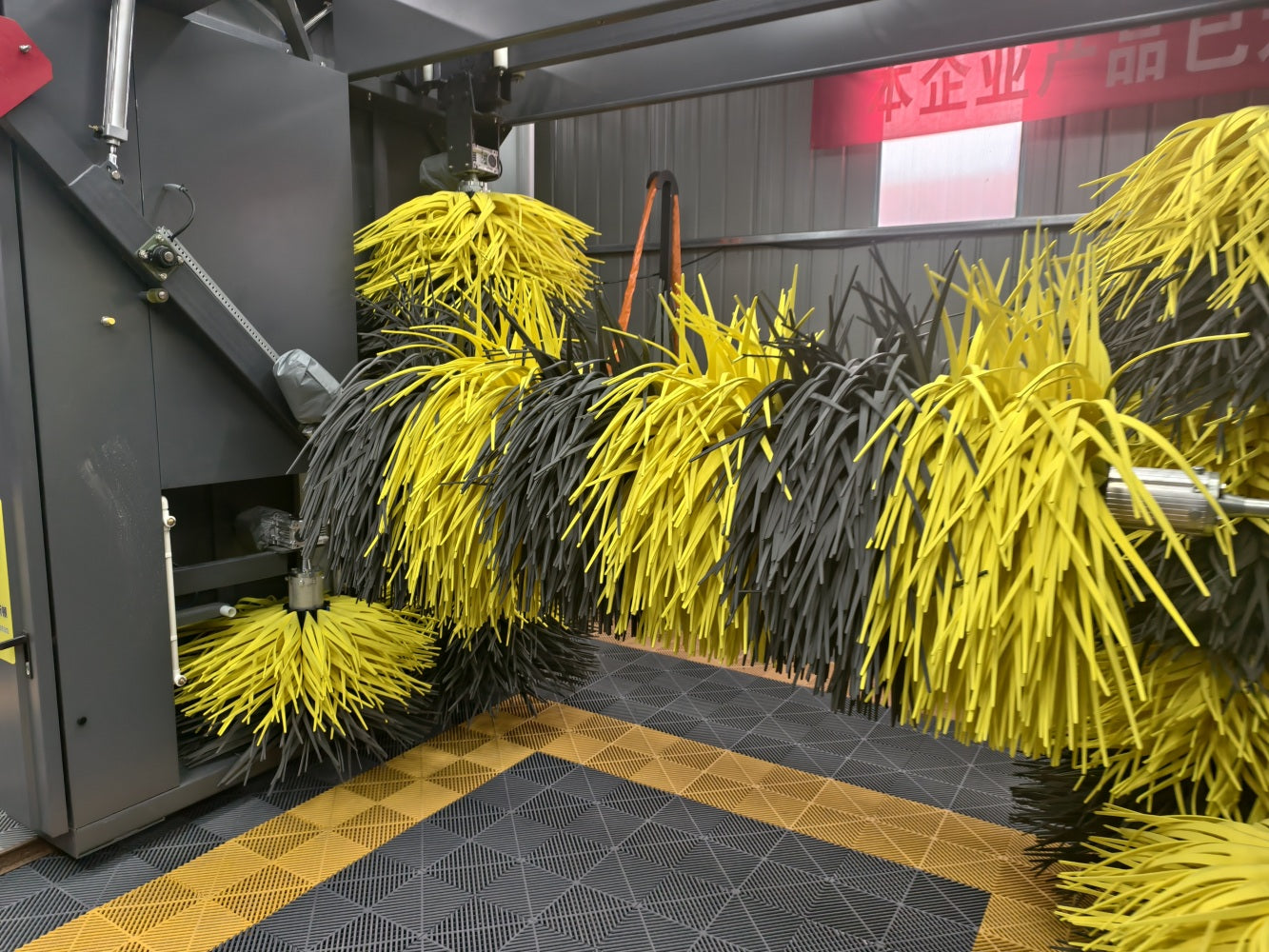

Use of an ultra-soft imported EVA foam brush ensures gentle paint damage
High-quality brush, durable and
long-lasting, for comprehensive cleaning of the vehicle body
Pure copper movement with 6-grade waterproofing
Built-in imported bearings

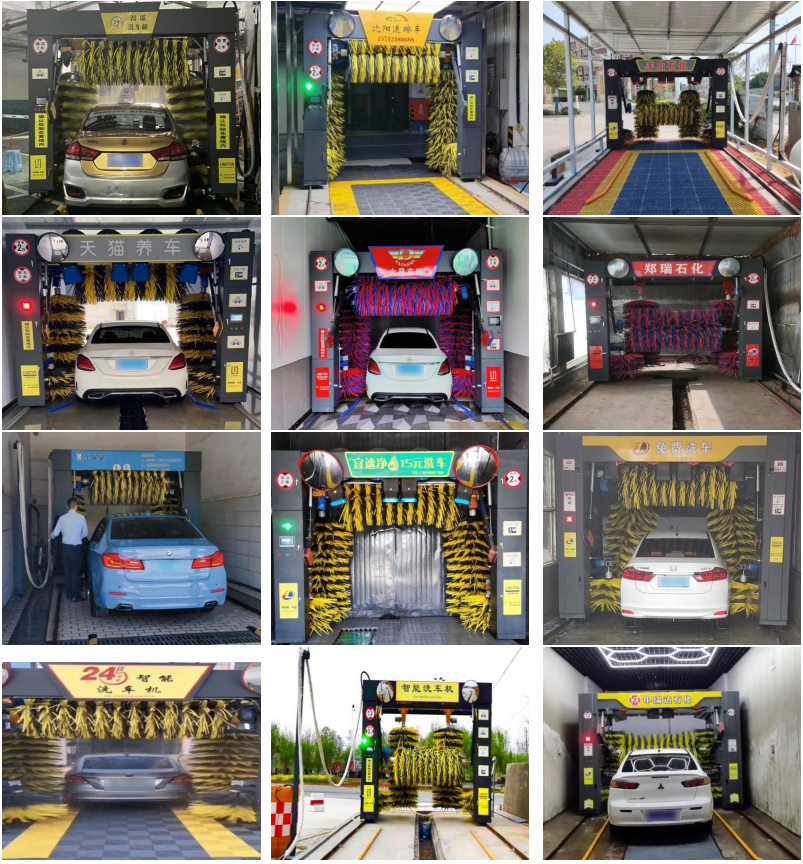

Application
