The ZW310-5A is a 22.8-ton class wheel loader engineered for maximum productivity and operator comfort in demanding environments. Combining a powerful Cummins engine with advanced transmission technology and a spacious panoramic cab, it delivers exceptional performance in mining, quarry, construction, and material handling applications . The machine features ZW310-5A's innovative technologies, including speed response clutch cut-off system and engine active control system, ensuring efficient operation and reduced fuel consumption

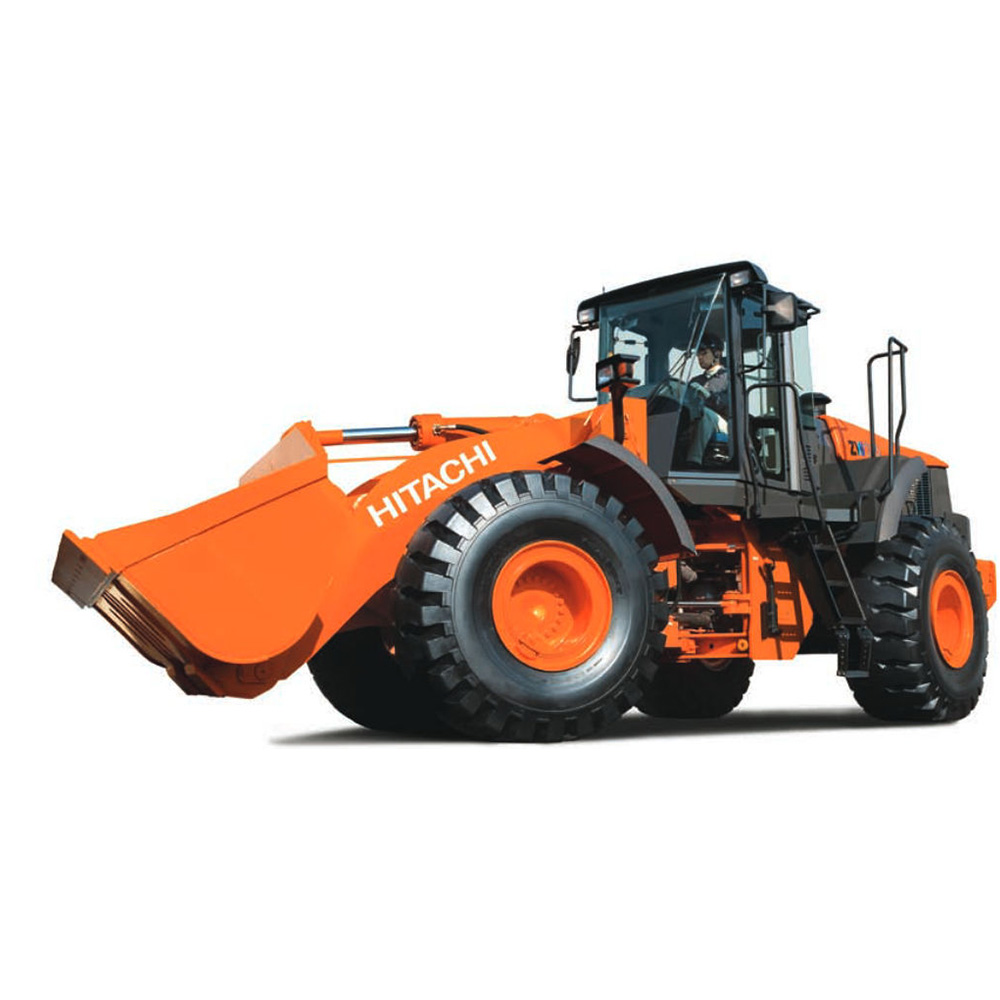

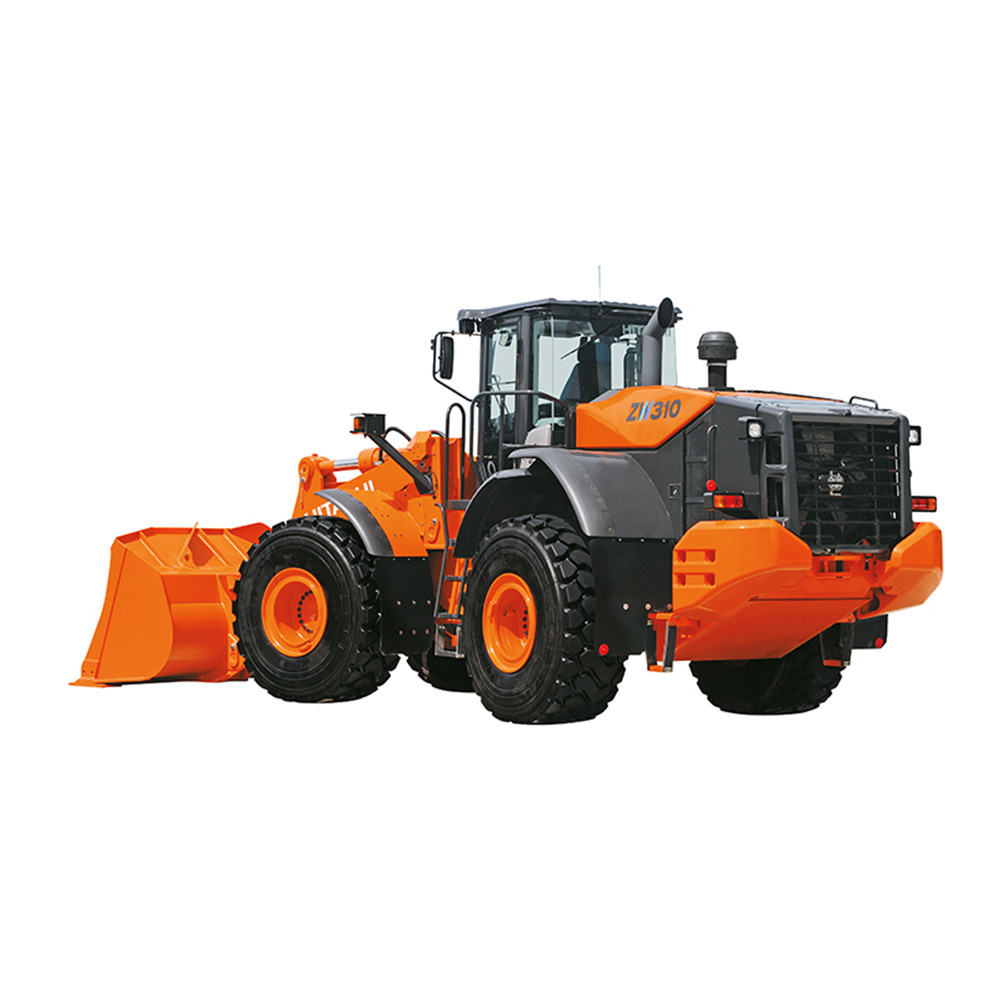

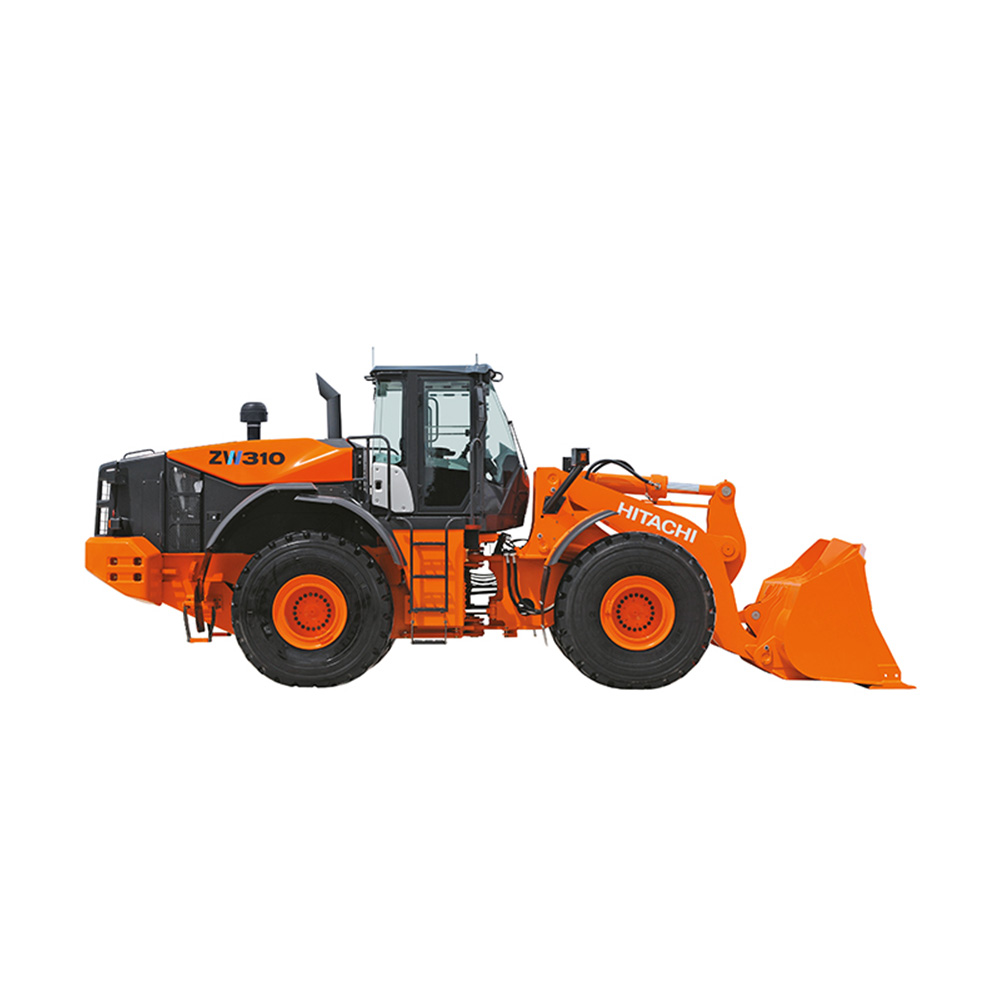

ZW310-5A Wheel Loader
The ZW310-5A represents the pinnacle of wheel loader engineering, designed to excel in the toughest working conditions while maximizing operator comfort and efficiency. At its core is a Cummins QSM11 diesel engine delivering 236kW (316HP) of reliable power, featuring 4-stroke, water-cooled, direct injection technology for optimal performance and fuel economy .
The machine is equipped with a speed response clutch cut-off system that senses travel speed and pedal pressure to regulate clutch disengagement timing, enabling smooth and efficient truck loading operations with selectable modes for different applications . The engine active control system plays a vital role in achieving economical operation, significantly reducing fuel consumption while enabling smooth and efficient performance .
The spacious panoramic cab features pillar-less connected windows providing nearly 360-degree visibility, enhancing safety and reducing blind spots during operation . The newly designed control levers offer excellent fingertip control and grip comfort for more efficient and comfortable operation . The dual-zone automatic climate control system provides heating to leg areas while cooling the head area simultaneously, ensuring operator comfort in all conditions .
The machine features a reinforced main frame with box-section construction around the central pin, which is subject to stress concentration, further increasing strength and durability . The new transmission comes standard with “automatic mode” that automatically selects the appropriate gear based on load conditions, reducing fuel consumption . For operations requiring extra power, the power mode provides additional traction and acceleration when needed .
Maintenance is simplified with an engine cover that opens upward, providing ample service space. Filters are centrally located for easy ground-level inspection and maintenance . The ZW310-5A is also equipped with big data technology that enhances operational efficiency and provides new customer experiences through data utilization in fleet management .
| Parameter | Specification |
|---|---|
| Model | ZW310-5A |
| Operating Weight | 22,410 – 22,860 kg |
| Engine | Cummins QSM11 |
| Rated Power (ISO9249, Net) | 236 kW (316 HP) |
| Rated Load | 6,000 kg |
| Bucket Capacity (ISO Heaped) | 3.4 – 4.5 m³ |
| Max. Dump Height at 45° | 2,890 – 2,975 mm |
| Max. Digging Force (Breakout) ISO | 181 – 198 kN |
| Overall Length | 8,790 mm |
| Overall Width | 2,930 mm |
| Overall Height | 3,470 mm |
| Wheelbase | 3,450 mm |
| Fuel Tank Capacity | 370 L |
🔹 Powerful & Efficient Cummins Engine
Equipped with the proven Cummins QSM11 engine delivering 236kW (316HP) of reliable power. Features 4-stroke, water-cooled, direct injection technology for optimal performance, fuel efficiency, and durability in demanding applications .
🔹 Advanced Transmission with Automatic Mode
The new transmission comes standard with automatic mode that selects appropriate gears based on load conditions, reducing fuel consumption and operator fatigue. Multiple speed ranges (up to 34.7 km/h) enable efficient travel between work sites .
🔹 Speed Response Clutch Cut-Off System
Innovative system senses travel speed and pedal pressure to regulate clutch disengagement timing, enabling smooth and efficient truck loading. Selectable modes allow operators to match machine response to specific application requirements .
🔹 Spacious Panoramic Cab with Superior Visibility
The pillar-less connected window design provides nearly 360-degree visibility, significantly reducing blind spots for safer operation. The spacious cab environment enhances operator comfort during long work shifts .
🔹 Operator-Focused Comfort Features
Includes dual-zone automatic climate control for simultaneous leg heating and head cooling, mechanical suspension seat that absorbs shock and vibration, and ergonomically designed control levers for reduced fatigue .
🔹 Reinforced Frame for Extended Durability
The main frame and its connections feature reinforced design with box-section construction around the central pin area subject to stress concentration, ensuring long-term durability in heavy-load applications .
🔹 Intelligent Fuel-Saving Features
ECO mark indicator illuminates when economical operation is activated, encouraging fuel-efficient operating habits. Engine active control system optimizes performance while reducing fuel consumption .
🔹 Easy Maintenance & Serviceability
Engine cover opens upward for ample service access. Filters are centrally located for easy ground-level inspection and replacement, reducing daily maintenance time and costs .
🔹 Big Data Technology Integration
Equipped with advanced telematics and data utilization capabilities that enhance operational efficiency and enable smarter fleet management through real-time machine monitoring .

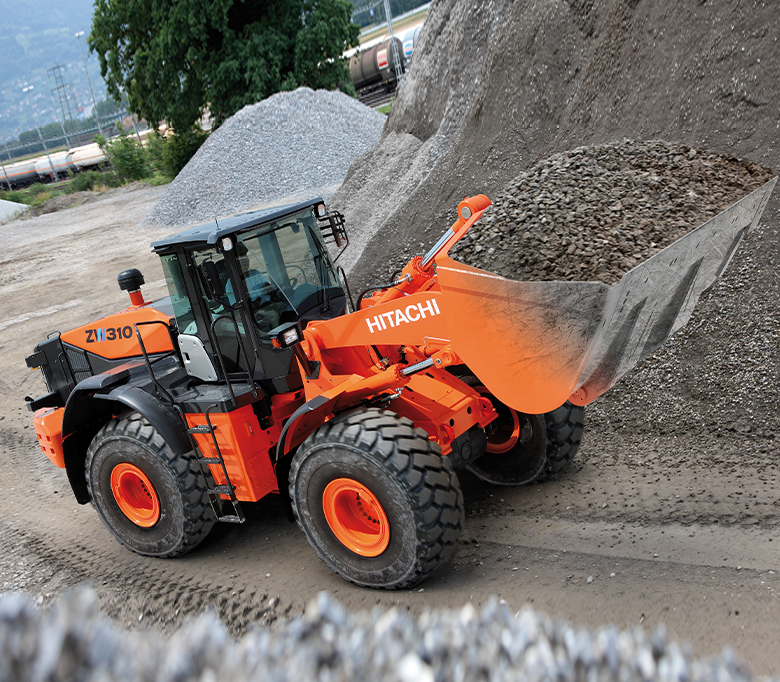

✅ Mining & Quarrying: High-volume loading of trucks, stockpile management, and material handling in mining operations and quarries .
✅ Heavy Construction: Earthmoving, site preparation, and material handling on large-scale construction and infrastructure projects.
✅ Port Operations: Loading and unloading bulk materials in busy port and harbor facilities .
✅ Material Handling: Moving aggregates, ores, and bulk materials in industrial yards and storage facilities.
✅ Road Construction: Earthmoving, grading, and material handling for highway and road building projects.
