The ZE375EK-10 is a robust 37-ton class hydraulic excavator designed for demanding mining and heavy construction applications. Meeting China's Stage IV emission standards, it combines a powerful Cummins engine with a reinforced structure and intelligent hydraulics, earning its reputation as an efficient and reliable "all-rounder" on tough job sites.

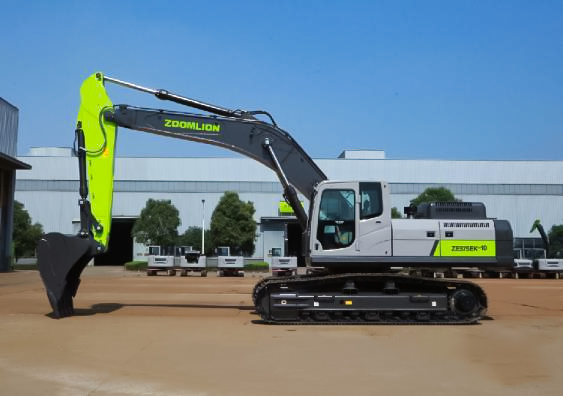

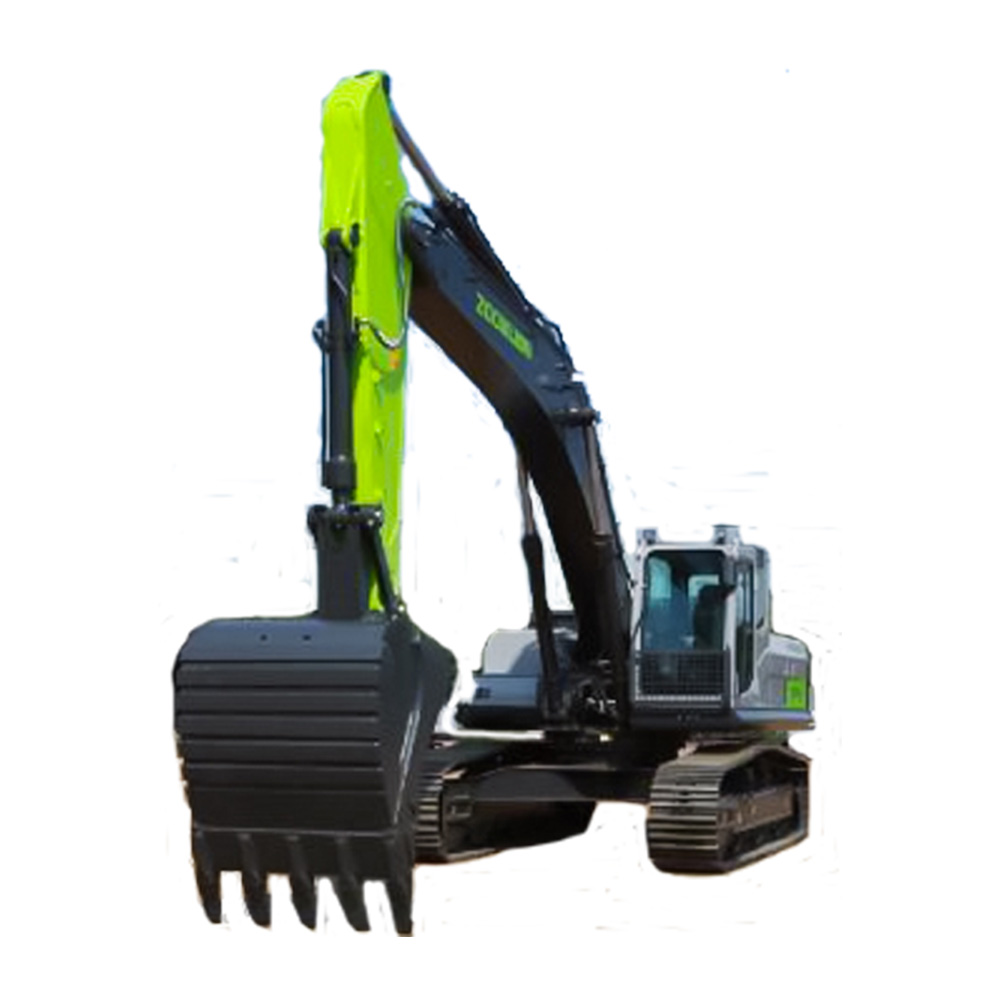

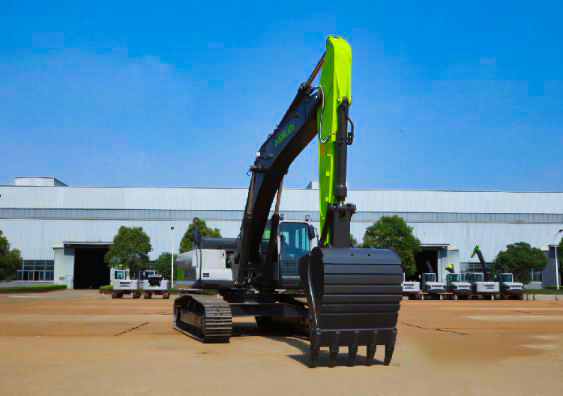

ZE375EK-10 Stage IV Crawler Excavator
The ZE375EK-10 is engineered to deliver maximum productivity in the most challenging conditions, from rock excavation to large-scale earthmoving. Its core is a high-performance Cummins QSL9 electronic-controlled engine that provides strong power while ensuring excellent fuel economy and compliance with stringent emission standards . The machine’s optimized hydraulic system ensures fast and precise response for high-efficiency digging and loading. Built with durability as a priority, it features a reinforced X-type undercarriage and strengthened work equipment to withstand continuous high-impact operations . The comfortable, spacious cab is designed to reduce operator fatigue and enhance productivity during long working hours.
| Item | Details |
|---|---|
| Model | ZE375EK-10 |
| Operating Weight | 37,400 kg |
| Engine | Cummins Engine, China Stage IV Compliant |
| Rated Power | 214 kW / 2100 rpm |
| Bucket Capacity | 1.8 m³ (1.6-1.9 m³ range) |
| Max. Digging Depth | 7,195 mm |
| Max. Digging Reach | 10,885 mm |
| Bucket Digging Force | 229 kN |
| Arm Digging Force | 186 kN |
🔹 Advanced Stage IV Power System
Equipped with a Cummins 9-liter smart electronic-controlled engine specifically developed for excavator duty cycles. It delivers reliable power, fast response, and low fuel consumption while meeting China Stage IV emissions .
🔹 Reinforced Structure for Heavy-Duty Use
Key components like the boom, arm, and undercarriage are specially reinforced to handle high-stress mining and rock breaking applications, ensuring outstanding durability and stability .
🔹 “All-Round Small Mining King” Versatility
Excels in both loading and breaking tasks. It can be configured with a 1.65-1.9 m³ bucket for earthmoving or a 175mm breaker for rock fragmentation, making it highly adaptable to various demanding job sites .
🔹 Intelligent Operation & Easy Maintenance
Features an intelligent control system for efficient operation and reduced fuel waste. Grouped service points and easy-access design simplify daily maintenance checks, helping to maximize machine uptime .
✅ Mining & Quarrying: High-volume loading of矿石 and overburden, primary and secondary rock breaking .
✅ Major Infrastructure Projects: Excavation for high-speed rail lines, highways, and large-scale earthworks .
✅ Large Industrial & Energy Construction: Site preparation for power plants, dam construction, and port development.
✅ Heavy Demolition & Rock Excavation: Projects involving hard rock and concrete structures.
