The XE135GA is a 13.5-ton class hydraulic excavator meeting China Stage IV standards. It combines a reliable Weichai engine with intelligent hydraulic controls for balanced performance and fuel economy, making it a versatile and cost-effective choice for diverse projects.

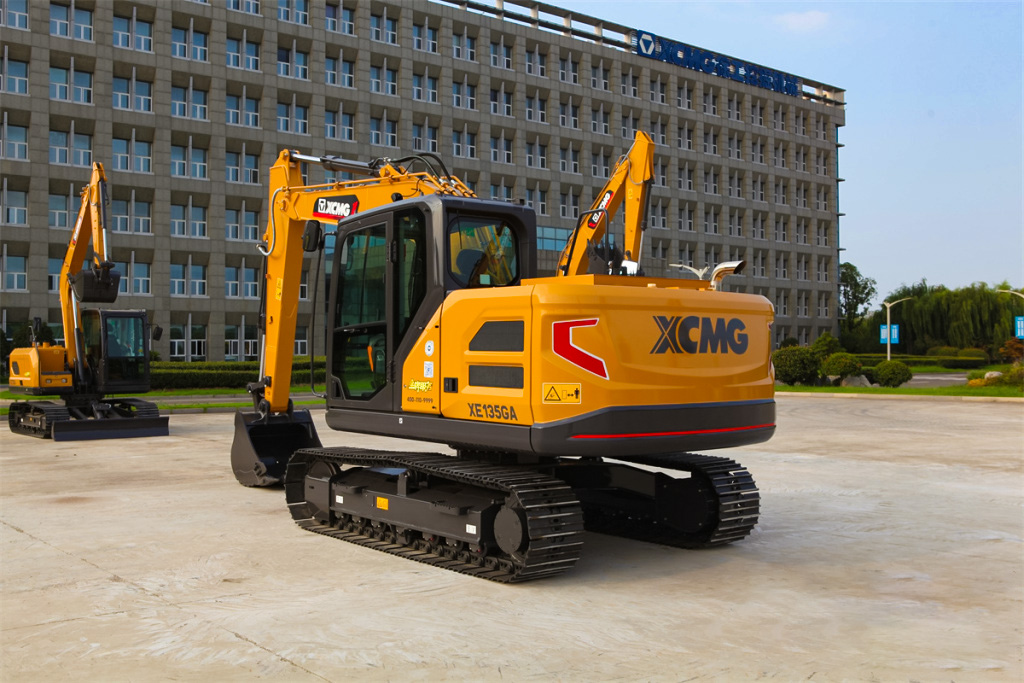

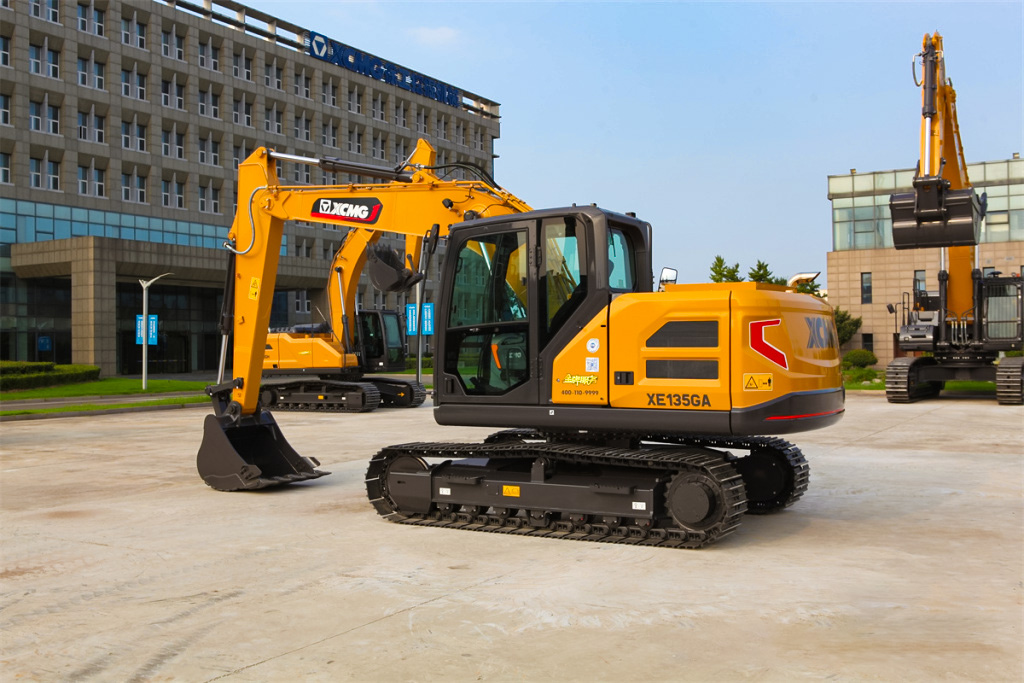

XE135GA Stage IV Excavator
The XE135GA is designed to tackle a wide range of tasks with efficiency and reliability. It features a Stage IV compliant Weichai WP4.1 engine that provides ample power while ensuring low emissions. The advanced load-sensing hydraulic system intelligently manages flow and pressure, enabling smooth, responsive operation and lower fuel consumption. Its reinforced working equipment and undercarriage ensure durability in demanding conditions, while the comfortable and quiet operator cab enhances productivity during long working hours.
| Item | Details |
|---|---|
| Operating Weight | 13,500 kg |
| Engine | Weichai WP4.1 Engine, Stage IV Compliant |
| Rated Power | 86 kW / 2100 rpm |
| Bucket Capacity | 0.52 m³ (Standard) |
| Max. Digging Depth | 5,600 mm |
| Max. Digging Reach | 8,110 mm |
| Bucket Digging Force | 93 kN |
| Arm Digging Force | 69 kN |
🔹 Eco-Friendly Stage IV Power
Equipped with the reliable Weichai WP4.1 engine, certified for China Stage IV emissions. It offers a strong power-to-weight ratio and optimized fuel efficiency for lower operating costs.
🔹 Intelligent & Efficient Hydraulics
Features an advanced load-sensing hydraulic system that automatically adjusts pump output to match the work demand, ensuring precise control and reducing energy waste.
🔹 Enhanced Durability & Stability
Built with a reinforced X-type chassis, heavy-duty boom and arm, and long-life undercarriage components, providing exceptional stability and longevity on tough job sites.
🔹 Operator-Centric Comfort
The spacious, ergonomic cab offers excellent visibility, low noise levels, and a suspended, adjustable seat. The intuitive control system reduces operator fatigue and boosts efficiency.
✅ General Construction: Building foundations, earthmoving, and backfilling on mid-sized sites.
✅ Road & Utility Work: Trenching for pipelines and cables, landscaping along highways.
✅ Quarry & Material Handling: Loading trucks, stockpiling aggregates, and light mining duties.
✅ Urban Development: Demolition, site preparation, and municipal engineering in cities.
