The XC968 is a 6.5-ton class wheel loader engineered for high productivity in demanding applications. Meeting China Stage IV emission standards, it combines a powerful Weichai high-pressure common rail engine with XC968's patented APD variable hydraulic system and heavy-duty drivetrain, delivering exceptional performance, fuel efficiency, and reliability in mining, port, quarry, and heavy construction operations

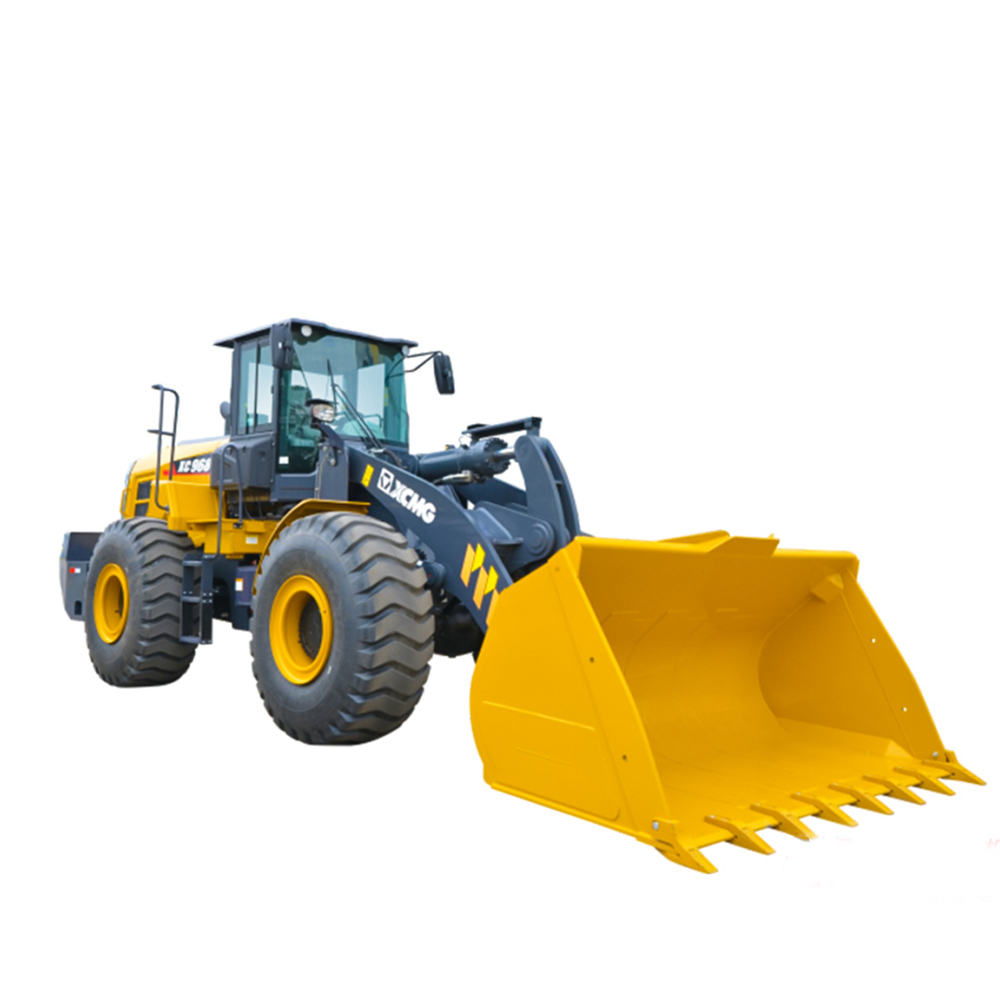

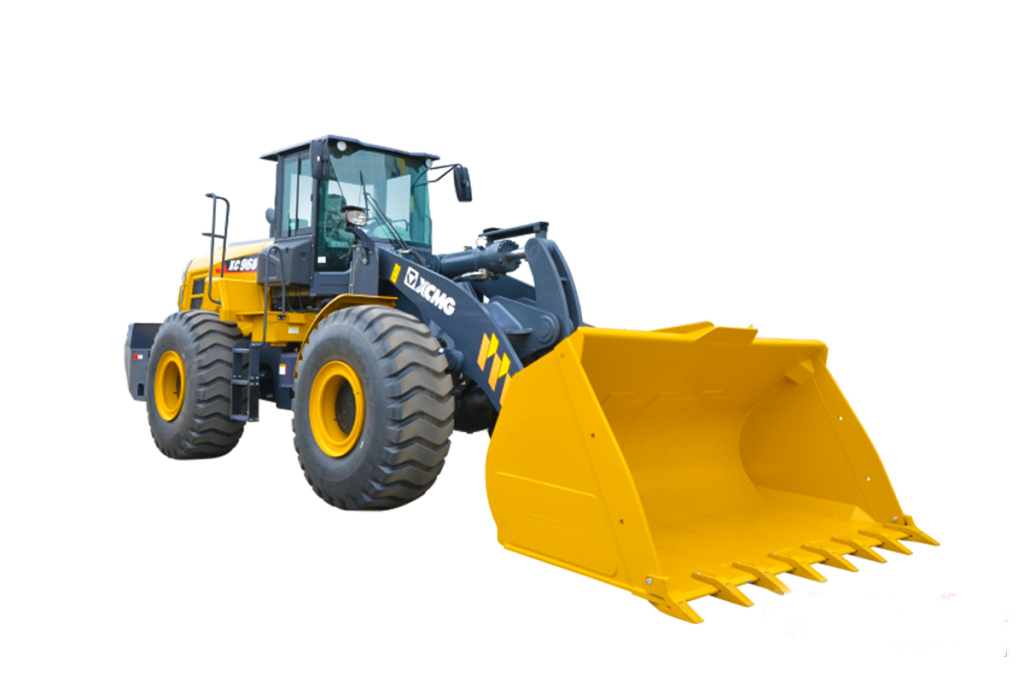

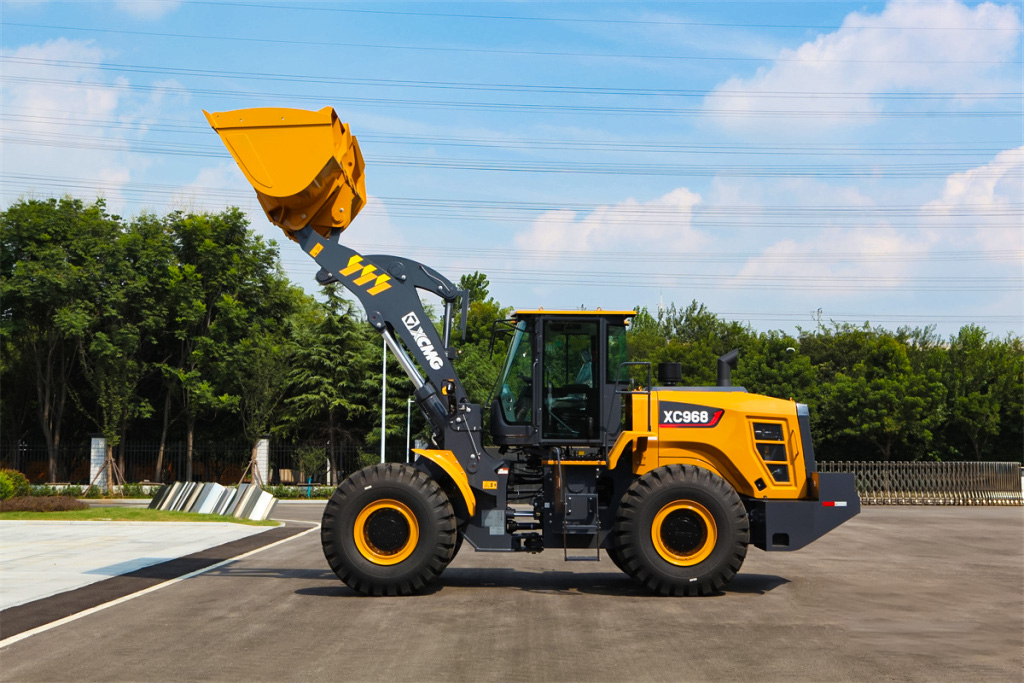

XC968 Stage IV Wheel Loader
The XC968 is the flagship model is new-generation XC9 series loaders, developed through extensive market research and building upon the advanced design and manufacturing technology of the mature LW600K model while incorporating Stage IV emission upgrades . Designed to excel in the toughest working conditions, it offers a perfect balance of power, efficiency, and operator comfort.
At its core is a Weichai high-pressure common rail engine meeting China Stage IV emission standards, delivering 192kW of reliable power with ample power reserve for demanding applications . The engine features electronic ECU-controlled fuel injection for high combustion efficiency and excellent fuel economy . Operators can select from light, medium, or heavy load power modes to match specific working conditions, achieving optimal fuel efficiency .
The machine is equipped with an MYF230A fully automatic powershift transmission with electro-hydraulic control, offering both automatic and manual shift modes . The transmission features a KD (kick-down) function for quick gear shifting during loading cycles, with four forward and four reverse gears for versatile operation .
The patented APD (Auto Power Distribution) variable hydraulic system represents a significant technological advancement . This load-sensing system intelligently distributes engine power on demand, delivering flow and pressure only when and where needed, resulting in exceptional energy savings and reduced fuel consumption . The pilot-operated control significantly reduces operator fatigue during long working hours .
The flow-amplified steering system provides light and responsive steering control with minimal effort . Dual mechanical and hydraulic steering limiters reduce steering impact and enhance safety . A secondary air filter system enables reliable operation in dusty environments such as mines and quarries .
The heavy-duty frame features a new platform design with excellent rigidity and load-bearing capacity . Key structural components undergo finite element analysis (FEA) to optimize stress distribution and eliminate weak points . The frame utilizes flexible welding processes for enhanced impact resistance, ensuring durability in the most demanding applications . The 7-ton class reinforced drive axle provides exceptional load capacity and reliability in harsh conditions .
The XC9 series international-standard cab offers a spacious, comfortable, and safe operating environment . Features include excellent visibility, low noise levels through extensive sound-dampening materials, and ergonomically designed controls within easy reach . The new rubber floor mat and sound-dampening materials applied to key areas ensure a quiet, comfortable ride . The multi-function instrument cluster displays real-time machine status and enables quick fault diagnosis .
Maintenance accessibility has been prioritized with a large-opening, upward-swinging engine hood providing ample service access . Extended lubrication points allow convenient greasing from ground level . The externally mounted air conditioner simplifies filter cleaning and replacement . Components such as the transmission, drive axle, and fuel tank feature labyrinth breather structures to prevent dust contamination .
The machine offers extensive customization options including 3.0-6.0m³ buckets, high-lift booms, side-dump buckets, and log clamps to suit various applications . The XC968 I log clamp version has proven particularly successful in demanding port operations, featuring strengthened counterweights and 7-ton drive axles for heavy timber handling .
| Parameter | Specification |
|---|---|
| Model | XC968 (China Stage IV) / XC968 I |
| Operating Weight | 20600±300kg |
| Engine | Weichai High-Pressure Common Rail Engine, Stage IV Compliant |
| Rated Power | 178 kW |
| Rated Load | 6,300kg |
| Bucket Capacity | 3.0 – 6.0 m³ (Standard: 4.0 m³) |
| Max. Dump Height at 45° | 3,415 – 3,485 mm (Varies by configuration) |
| Breakout Force | 200 ± 5 kN |
| Max. Traction Force | 175 kN |
| Overall Length | 8,930 mm (approx.) |
| Overall Width | 2,910 – 3,236 mm |
| Overall Height | 3,470 – 3,675 mm |
| Wheelbase | 3,400 mm |
| Transmission | MYF230A Fully Automatic Powershift Transmission, F4/R4 with KD Function |
| Drive Axle | 7-Ton Class Heavy-Duty Dry Axle |
🔹 Powerful & Efficient Stage IV Weichai Engine
Equipped with a Weichai high-pressure common rail engine meeting China Stage IV standards, delivering 192kW of power with ample reserve for demanding applications . Features electronic ECU-controlled fuel injection for high combustion efficiency and excellent fuel economy .
🔹 Three Power Modes for Optimal Fuel Efficiency
Operators can select from light, medium, or heavy load power modes to match specific working conditions, achieving optimal fuel efficiency and reduced operating costs .
🔹 Patented APD Variable Hydraulic System
patented Auto Power Distribution system intelligently delivers flow and pressure on demand, resulting in exceptional energy savings and reduced fuel consumption . Pilot-operated controls significantly reduce operator fatigue .
🔹 Fully Automatic Powershift Transmission
MYF230A transmission with electro-hydraulic control offers both automatic and manual shift modes . Features KD (kick-down) function for quick gear shifting during loading cycles, with F4/R4 gears for versatile operation .
🔹 Heavy-Duty Structure for Demanding Applications
New platform frame with excellent rigidity and load-bearing capacity . Finite element analysis optimizes stress distribution and eliminates weak points . 7-ton class reinforced drive axle provides exceptional load capacity and reliability in harsh conditions .
🔹 Superior Operator Environment
XC9 series international-standard cab offers spacious, comfortable operation with excellent visibility and low noise levels . Ergonomic controls within easy reach reduce operator fatigue . Multi-function instrument cluster displays real-time status and enables quick fault diagnosis .
🔹 Easy Maintenance & Serviceability
Large-opening, upward-swinging engine hood provides ample service access . Extended lubrication points allow convenient ground-level greasing . Externally mounted air conditioner simplifies filter cleaning and replacement .
🔹 Enhanced Safety Features
Flow-amplified steering system provides light, responsive control . Dual mechanical and hydraulic steering limiters reduce impact and enhance safety . Secondary air filter system enables reliable operation in dusty environments .
🔹 Versatile Configuration Options
Extensive customization options including 3.0-6.0m³ buckets, high-lift booms, side-dump buckets, and log clamps to suit various applications . XC968 I log clamp version specially designed for demanding port operations .
🔹 Proven Fuel Economy
Delivers powerful performance with fuel consumption comparable to 5-ton class loaders, providing exceptional value and lower operating costs .

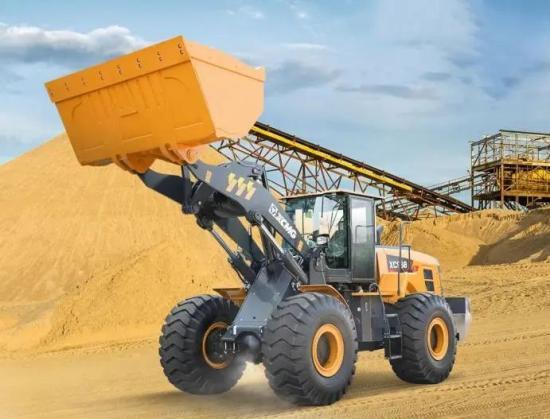

✅ Mining & Quarrying: High-volume loading of trucks, stockpile management, and material handling in mines and quarries with reinforced structure and secondary air filtration for dusty conditions .
✅ Port Operations: Bulk material handling, ship loading/unloading, and stockpile management in busy port facilities; log clamp version excels in timber handling applications .
✅ Construction & Infrastructure: Earthmoving, site preparation, backfilling, and material handling on large-scale construction and infrastructure projects .
✅ Material Handling: Loading and moving aggregates, ores, coal, and bulk materials in industrial yards and storage facilities .
✅ Steel Mills & Heavy Industry: Handling raw materials in steel plants and heavy industrial facilities requiring robust equipment .
✅ Coal Handling: Coal yard management, loading trucks, and stockpile maintenance with specialized configurations .
