The SW955K is a 5.5-ton class wheel loader engineered for high productivity in demanding applications. Meeting China Stage IV emission standards, it combines a powerful engine with a heavy-duty 6-ton planetary transmission and intelligent control systems, delivering exceptional performance, fuel efficiency, and reliability in mining, quarry, construction, and material handling operations.

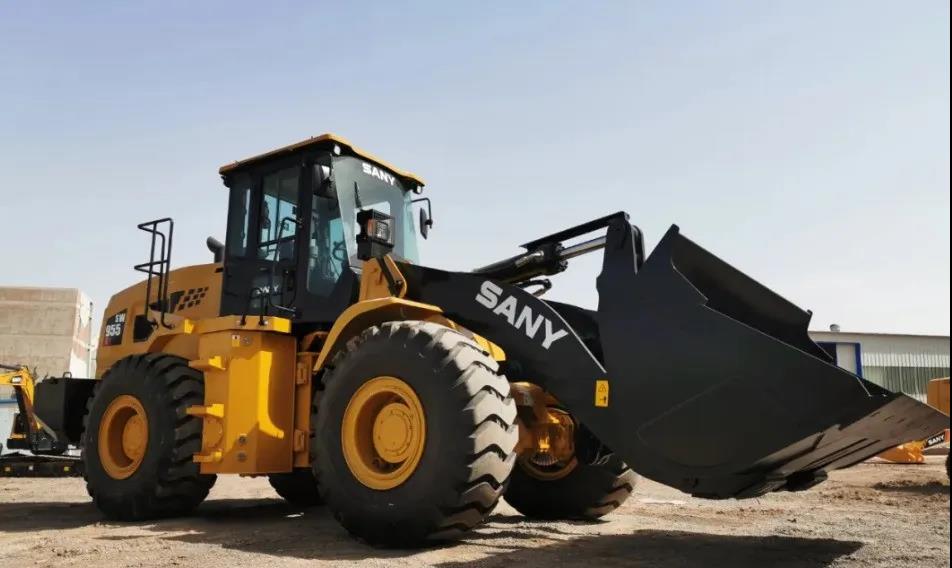

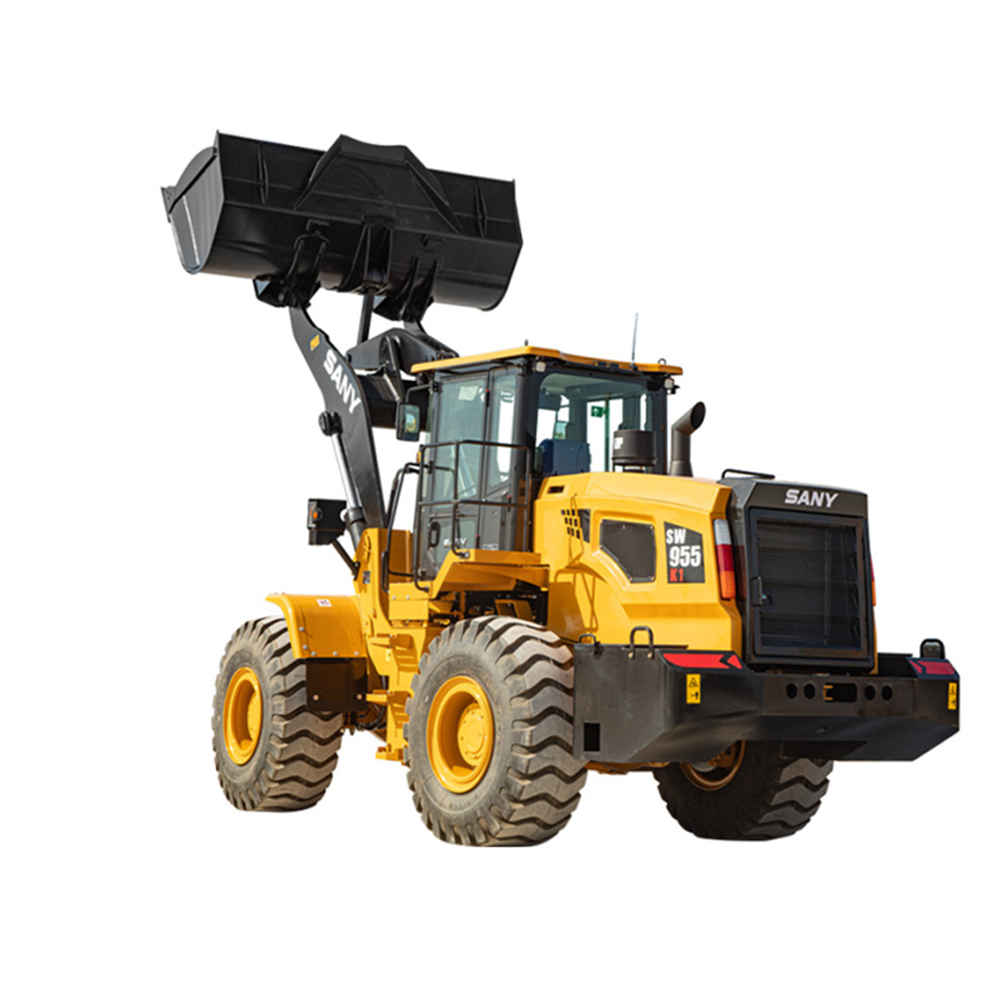

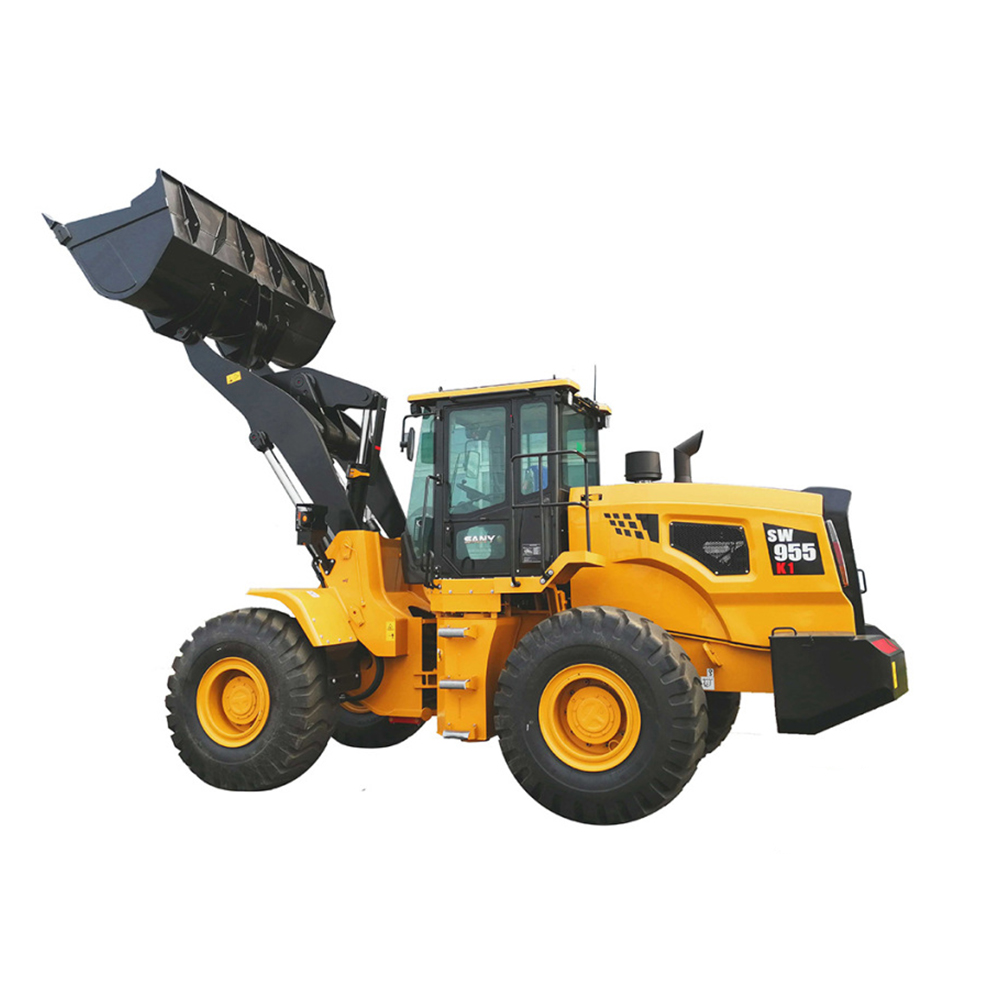

SW955K Stage IV Wheel Loader
The SW955K represents a new generation of wheel loaders designed to excel in the toughest working conditions while maximizing operator comfort and efficiency. At its core is a high-performance engine that delivers reliable power while meeting stringent Stage IV emission standards .
The machine features a custom-designed heavy-duty 6-ton planetary transmission specifically developed for loaders. This transmission increases travel speed by 10% and traction force to 175kN (significantly higher than the industry standard of 155kN), resulting in over 15% improvement in comprehensive operating efficiency . The 60-series transmission paired with a 10-liter displacement engine and 6-ton heavy-duty frame significantly enhances load capacity and addresses common durability issues found in 50-series planetary transmissions .
The hydraulic system utilizes an industry-leading load-sensing quantitative triple-pump confluence design. Flow is distributed on demand, with priority given to the steering system at low RPM for responsive steering, while flow is directed to the working system at high RPM to enhance operating efficiency. The triple-pump confluence enables faster boom raising speeds (14% improvement) for quicker stockpiling and short-distance loading .
The center-hinge articulated design ensures that the front and rear wheel tracks are perfectly aligned, reducing tire wear and extending tire life while providing a smaller turning radius for better maneuverability in confined spaces .
The fully hydraulic braking system features dual independent circuits for front and rear axles, providing superior reliability, safety, and responsiveness compared to conventional air-over-hydraulic systems commonly used in the industry .
The operator cab is designed for comfort during long working hours, featuring excellent visibility, ergonomic controls, and effective climate control. Operators report reduced fatigue even after 10+ hours of continuous operation .
The machine is equipped with an intelligent management system featuring a 7-inch smart touchscreen display and EVI big data management terminal APP, enabling both on-site and remote intelligent monitoring of machine operations and faults in real-time . Features include remote monitoring and lock protection, one-click service call, intelligent fault diagnosis, and fleet networking capabilities .
| Parameter | Specification |
|---|---|
| Model | SW955K (China Stage IV) / SW955K-S |
| Operating Weight | 16,750 – 17,400 kg |
| Engine | Weichai WP10HG220E473A / D09S4-240E0 |
| Rated Power | 162 kW / 2000 rpm |
| Rated Load | 5,300 – 5,500 kg |
| Bucket Capacity | 2.7 – 4.0 m³ (Standard: 2.8 m³) |
| Max. Dump Height at 45° | 3,126 ± 50 mm |
| Breakout Force | 178 – 180 kN |
| Max. Traction Force | 168 – 179 kN |
| Three-in-One Cycle Time | 9.5 ± 0.5 s |
| Overall Length | 7,990 – 8,130 mm |
| Overall Width | 2,850 – 3,030 mm |
| Overall Height | 3,520 mm |
| Wheelbase | 3,100 – 3,300 mm |
🔹 6-Ton Transmission for Superior Efficiency
Custom-designed heavy-duty 6-ton planetary transmission increases travel speed by 10% and traction force to 175kN, delivering over 15% improvement in comprehensive operating efficiency. Enables 5.5-ton rated load with 6-ton class operating efficiency .
🔹 Powerful & Reliable Engine
Available with Weichai WP10HG220E473A or D09S4-240E0 engine, delivering 162kW of power at 2000rpm. Meets China Stage IV emission standards while providing excellent fuel economy and reliable performance .
🔹 Advanced Triple-Pump Hydraulic System
Industry-leading load-sensing quantitative triple-pump confluence system distributes flow on demand. Priority steering at low RPM for responsive handling, while high RPM flow directed to working system for faster operation. Boom raising speed improved by 14% for quicker cycles .
🔹 Fully Hydraulic Braking System
Dual independent circuits for front and rear axles provide superior reliability and safety. Enclosed system protects brake fluid from contamination, extending component life and reducing failure rates compared to conventional air-over-hydraulic systems .
🔹 Center-Hinge Articulated Design
Perfectly aligned front and rear wheel tracks reduce tire wear and extend tire life. Smaller turning radius enables better maneuverability in confined spaces, improving job site accessibility .
🔹 Intelligent Management System
7-inch smart touchscreen display with EVI big data management terminal enables real-time monitoring of machine operations and faults. Features include remote monitoring and lock protection, one-click service call, intelligent fault diagnosis, and fleet networking .
🔹 Heavy-Duty Durability
60-series transmission paired with 10-liter displacement engine and 6-ton heavy-duty frame significantly enhances load capacity. Reinforced drive axle with heavy-duty components ensures reliability in demanding applications .
🔹 Operator-Focused Comfort
Spacious cab with excellent visibility, ergonomic controls, and effective climate control reduces operator fatigue during long working hours. Operators report comfort even after 10+ hours of continuous operation .
🔹 Easy Maintenance
Centralized lubrication points and grouped service locations simplify daily maintenance. Easy access to filters and service points reduces downtime and maintenance costs .

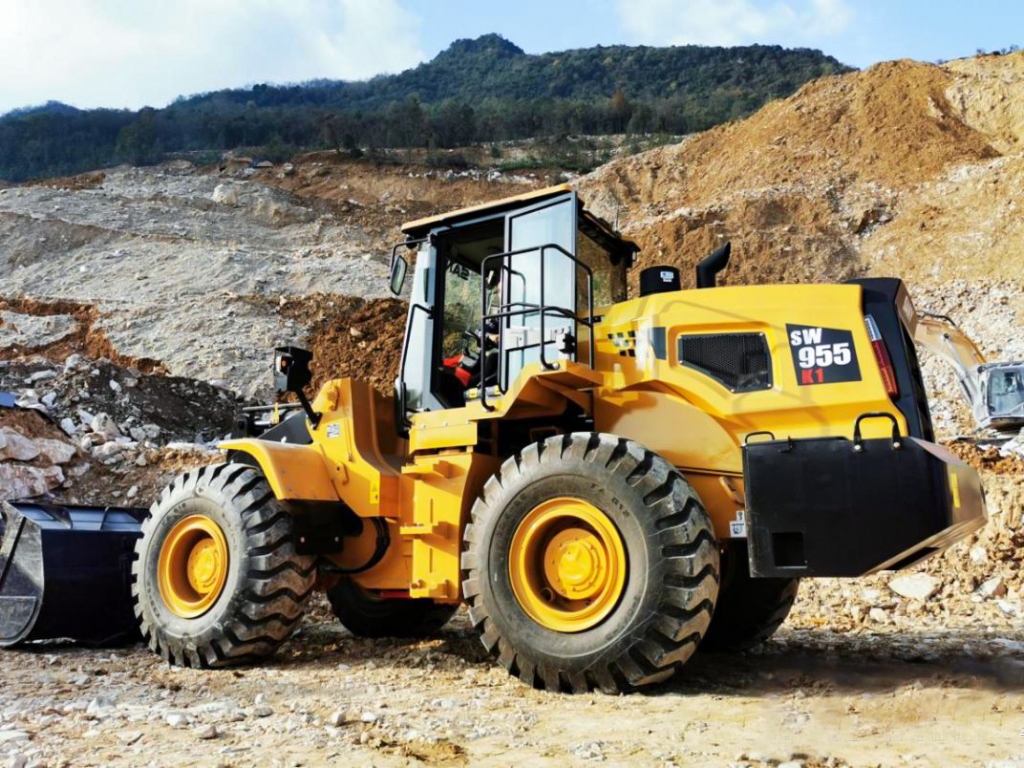

✅ Mining & Quarrying: High-volume loading of trucks, stockpile management, and material handling in mining operations and quarries .
✅ Construction & Infrastructure: Earthmoving, site preparation, backfilling, and material handling on building sites and road projects.
✅ Material Handling: Loading and moving aggregates, ores, and bulk materials in industrial yards and storage facilities.
✅ Waste Processing & Recycling: Handling waste materials in recycling facilities and waste transfer stations .
✅ Heavy-Duty Earthmoving: Large-scale excavation and material movement in demanding conditions.
