The L956HL is a 5.5-ton class wheel loader engineered for high productivity in demanding applications. Meeting China Stage IV emission standards, it features six major upgrades in appearance, power, efficiency, reliability, comfort, and maintenance . Combining a powerful Weichai WP10H engine with a TP190 heavy-duty transmission and optimized hydraulic system, it delivers exceptional performance, fuel efficiency, and durability in mining, quarry, construction, and material handling operations.

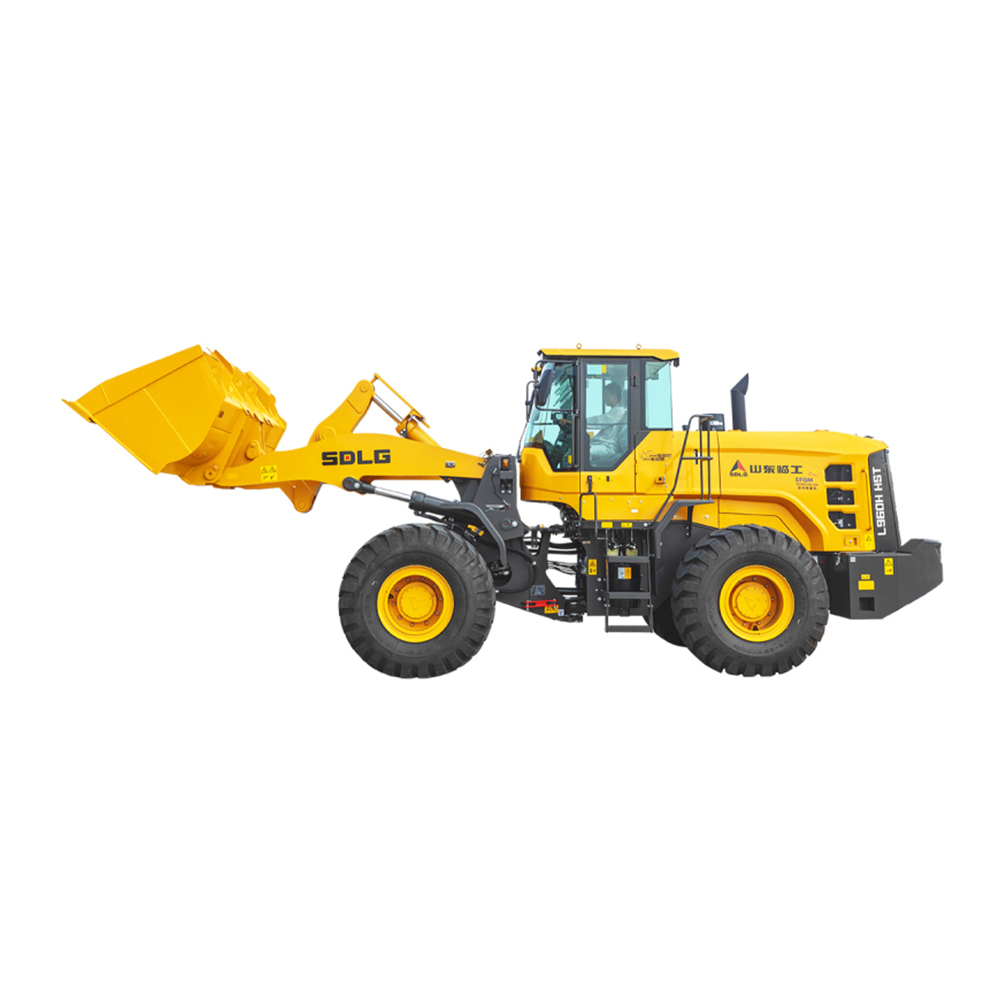

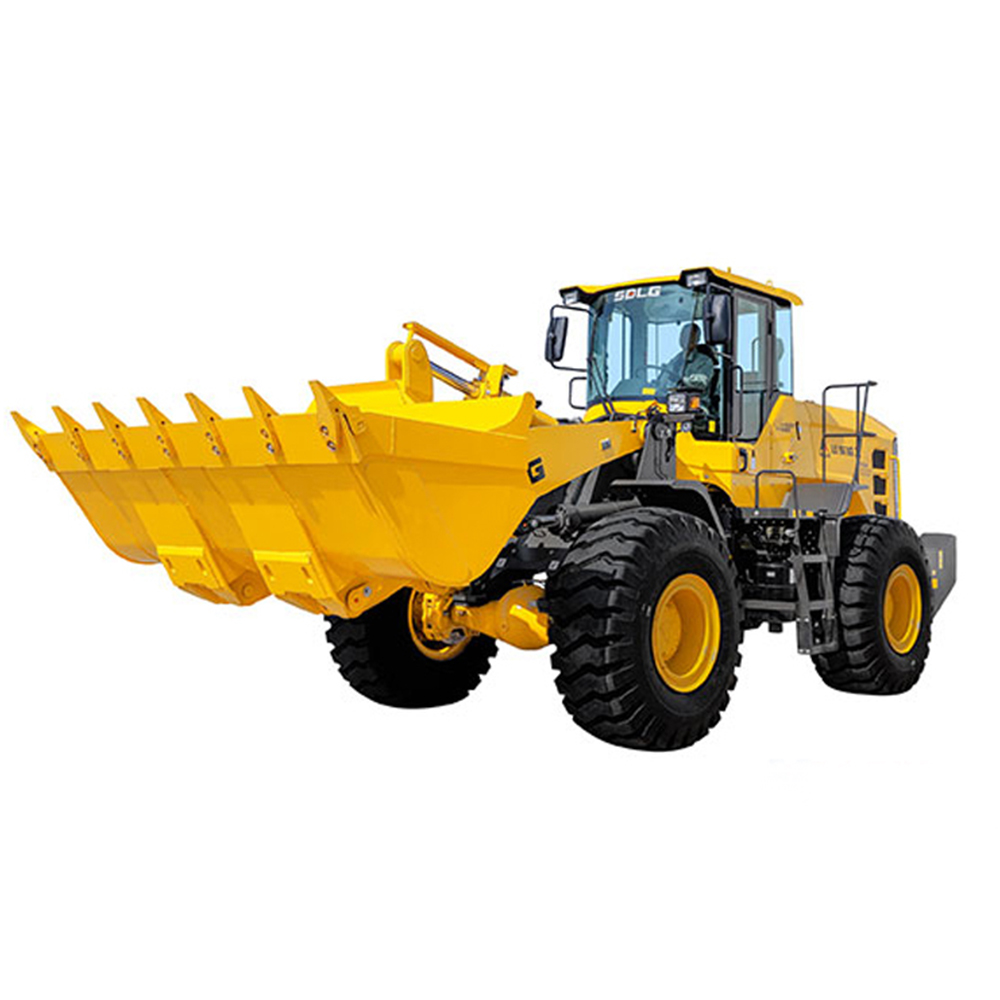

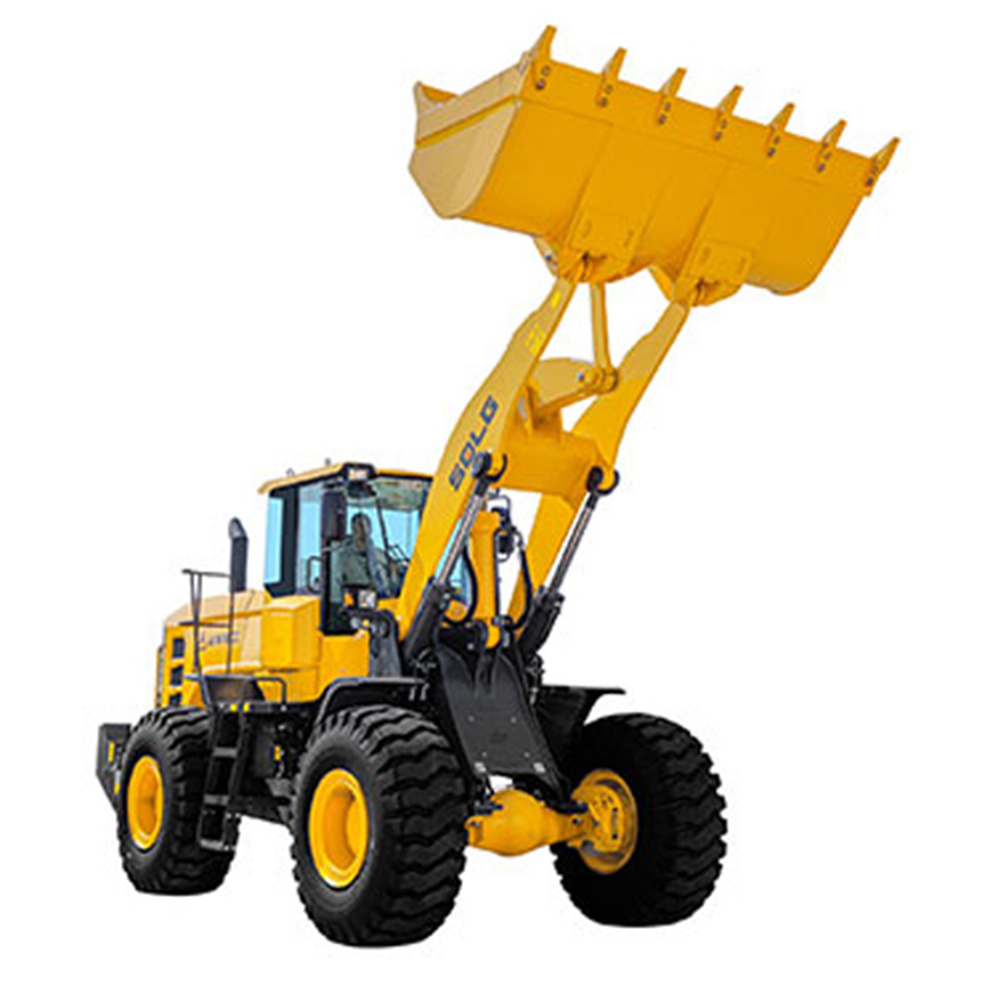

L956HL Stage IV Wheel Loader
The L956HL represents a comprehensive upgrade from its predecessor, designed to excel in the toughest working conditions while maximizing operator comfort and efficiency . At its core is a Weichai WP10H Stage IV compliant engine delivering 170kW of power, representing a 5% power increase over the previous generation with larger output torque and stronger performance . The engine features higher combustion efficiency, reducing fuel consumption by approximately 10% compared to the previous generation .
The machine is equipped with a TP190 heavy-duty planetary transmission upgraded from the previous TP170 model, featuring magnetic suspension clutch technology for enhanced reliability and extended service life . The dual-pump confluence hydraulic system provides longer confluence time and faster action speeds, achieving a three-in-one cycle time of just 9.8 seconds . The hydraulic system design pressure reaches 21MPa, higher than the industry average, ensuring faster response during high-position loading or heavy-duty operations .
The reinforced structure features a wide-hinge box-type frame with increased load capacity and center-aligned axle design that reduces tire slippage during pushing and heavy-load operations . Both front and rear axles are heavy-duty reinforced types for greater load capacity and higher strength . The wheelbase has been extended to 3,400mm, enhancing machine stability during operation .
The H-series operator cab offers increased space, panoramic visibility, and standard heating and air conditioning for year-round comfort . Features include a color multi-function LCD display showing real-time data such as average fuel consumption, total operating hours, and ambient temperature . The standard high-end suspension seat offers multi-dimensional adjustability to reduce operator fatigue during long working hours . A thoughtful heating/cooling storage box with built-in air conditioning vents adds to operator convenience .
Maintenance accessibility has been improved with large-opening engine hoods and centralized filter layouts . Components feature integrated design with more compact structure and reduced part count . The urea tank and urea pump are conveniently located on the right side of the counterweight for easy refilling and maintenance .
| Parameter | Specification |
|---|---|
| Model | L956HL (China Stage IV) |
| Operating Weight | 17,500 kg |
| Engine | Weichai WP10H, Stage IV Compliant |
| Rated Power | 170 kW |
| Rated Load | 5,500 kg |
| Bucket Capacity | 2.7 – 5.0 m³ (Standard: 3.0 m³) |
| Max. Dump Height at 45° | 3,420 mm |
| Dump Reach at Max. Height | 1,210 mm |
| Breakout Force | ≥170 kN |
| Max. Traction Force | 160 kN |
| Three-in-One Cycle Time | ≤9.8 s |
| Overall Length | 8,670 mm |
| Overall Width | 3,024 mm |
| Overall Height | 3,466 mm |
| Wheelbase | 3,400 mm |
| Steering Angle | 35° |
🔹 Stage IV Compliant Weichai Engine
Equipped with the Weichai WP10H engine delivering 170kW power, a 5% increase over previous generation with larger output torque and stronger performance . Features higher combustion efficiency and approximately 10% reduction in fuel consumption . Extensive service network ensures easy access to filters and affordable maintenance .
🔹 TP190 Heavy-Duty Transmission
Upgraded from TP170 to TP190 heavy-duty planetary transmission featuring magnetic suspension clutch technology for enhanced reliability and extended service life . Designed to withstand demanding applications with improved durability .
🔹 Dual-Pump Confluence Hydraulic System
Optimized hydraulic system provides longer confluence time and faster action speeds, achieving a three-in-one cycle time of just 9.8 seconds . System design pressure reaches 21MPa, higher than industry average, ensuring faster response during high-position loading or heavy-duty operations .
🔹 Reinforced Structure for Heavy-Duty Use
Wide-hinge box-type frame with increased load capacity and center-aligned axle design reduces tire slippage during pushing and heavy-load operations . Both front and rear axles are heavy-duty reinforced types for greater load capacity and higher strength . Extended wheelbase of 3,400mm enhances machine stability .
🔹 Superior Operator Comfort
H-series cab offers increased space, panoramic visibility, and standard heating and air conditioning . Color multi-function LCD display shows real-time data including average fuel consumption, total operating hours, and ambient temperature . Standard high-end suspension seat with multi-dimensional adjustability reduces operator fatigue . Heating/cooling storage box adds to convenience .
🔹 Easy Maintenance & Serviceability
Large-opening engine hoods and centralized filter layouts simplify daily maintenance . Components feature integrated design with more compact structure and reduced part count . Urea tank and pump conveniently located on right side of counterweight for easy refilling and maintenance . Inherits the centralized layout advantages from Stage III models .
🔹 High-Performance Bucket Design
Bucket capacity increased from 2.8m³ in Stage III to 3.0m³ standard, delivering higher operational efficiency . Optimized working device design ensures high breakout force and excellent bucket fill factor . Equipped with mining-grade tires for reliable performance and long service life .
🔹 Intelligent Power Management
Electronic high-pressure common rail engine features P, S, E (heavy, medium, light load) three-stage power control modes, allowing operators to select appropriate mode based on working conditions to reduce energy consumption and improve productivity . Intelligent electromagnetic clutch fan system automatically adjusts fan speed based on engine coolant temperature for energy savings and noise reduction .
🔹 Advanced Electrical System
Connectors feature waterproof, dustproof, and anti-loosening design with high safety protection level . Engine limp-home function and dual-potentiometer accelerator pedal enable fault protection and early diagnosis . Centralized fuse and relay box simplifies maintenance with OBD II standard fault diagnosis interface for convenient engine inspection and maintenance .
✅ Mining & Quarrying: High-volume loading of trucks, stockpile management, and material handling in mining operations and quarries .
✅ Construction & Infrastructure: Earthmoving, site preparation, backfilling, and material handling on building sites and road projects.
✅ Material Handling: Loading and moving aggregates, ores, and bulk materials in industrial yards and storage facilities.
✅ Heavy-Duty Earthmoving: Large-scale excavation and material movement in demanding conditions with reinforced structure for high-durability requirements .
✅ Port Operations: Loading and unloading bulk materials in ports and harbor facilities.
