The JGM767KV is a robust 6-ton class wheel loader engineered for high productivity in diverse applications. It combines a reliable Weichai high-pressure common rail engine with an optimized hydraulic system and a spacious new-generation KV series cab, delivering powerful performance, fuel efficiency, and exceptional operator comfort.

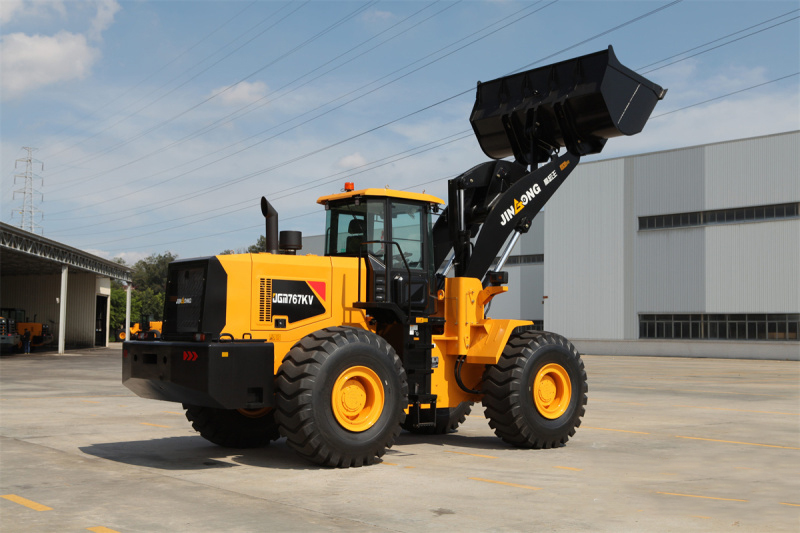

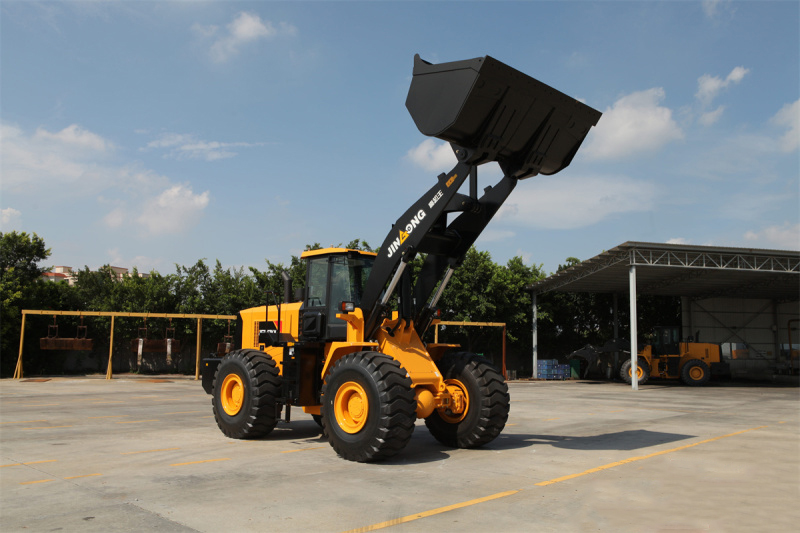

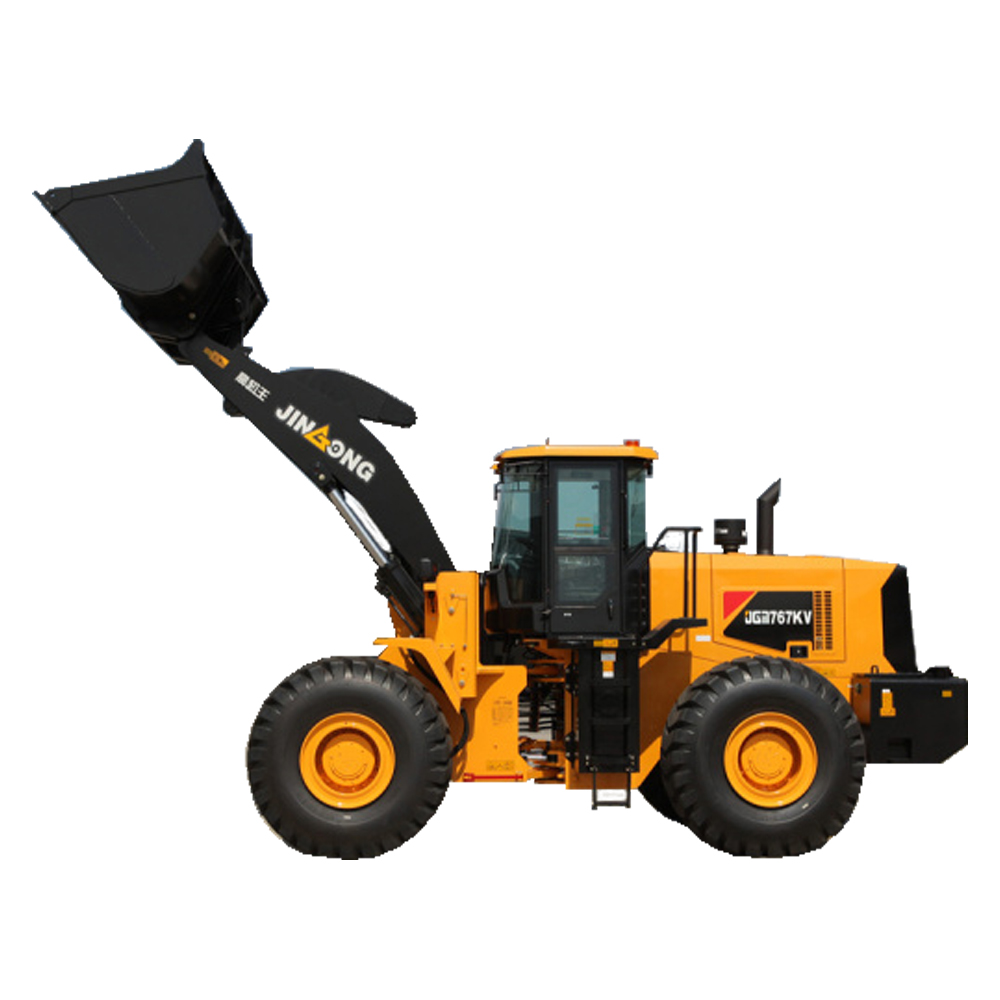

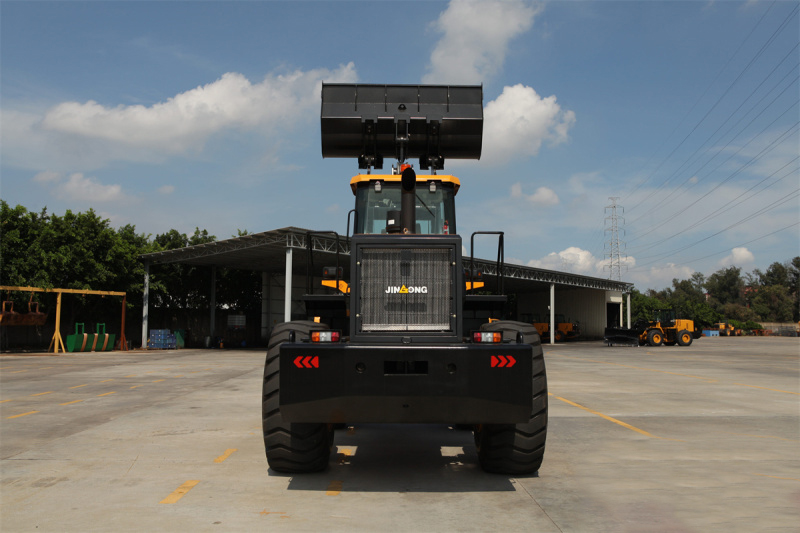

JGM767KV Wheel Loader
The JGM767KV is designed to excel in demanding environments, from construction sites to quarries and material handling yards. At its core is a Weichai electronic high-pressure common rail engine, providing strong low-speed torque, reliable power, and improved fuel economy with reduced emissions. The machine features a single-stage, four-element dual-turbine torque converter that optimizes power matching with the transmission for high tractive force. Its dual-pump confluence hydraulic system with priority steering ensures high working efficiency and low energy consumption. The Z-bar reverse linkage with horizontal lift cylinder design delivers high breakout force and fast cycle times. The reinforced structure, optimized cooling system, and centralized lubrication points enhance durability and simplify maintenance.
| Parameter | Specification |
|---|---|
| Model | JGM767KV |
| Operating Weight | 21,000 – 21,200 kg |
| Engine | Weichai High-Pressure Common Rail Engine (Stage III or Stage IV available) |
| Rated Power | 178 kW |
| Bucket Capacity | 3.5 – 4.0 m³ |
| Rated Load | 6,000 kg |
| Dump Height (45°) | 3,125 – 3,135 mm |
| Breakout Force | ≥200 kN |
| Three-in-One Cycle Time | ≤12 s |
🔹 Powerful & Efficient Engine
Equipped with a Weichai electronic high-pressure common rail engine delivering strong low-speed torque for excellent digging performance, while ensuring fuel efficiency and environmental compliance (available in Stage III or Stage IV).
🔹 Optimized Hydraulic System for High Productivity
The dual-pump confluence hydraulic system with priority steering ensures fast response, smooth operation, and reduced energy loss, maximizing working efficiency.
🔹 Three Power Modes for Fuel Savings
Operators can select from “Heavy,” “Medium,” or “Light” load power modes to match specific working conditions, optimizing power output and reducing fuel consumption.
🔹 Spacious KV Series Operator Cab
The newly designed KV series cab features air conditioning, adjustable steering column, suspension seat, USB charging, and excellent visibility through double-curved tempered glass. Four-point elastic suspension and sound-absorbing materials reduce vibration and noise for all-day comfort.
🔹 Durable & Easy to Maintain
Features include finite element analysis-optimized structures, centered hinge pin arrangement for longer tire life, centralized lubrication points, and high-precision hydraulic filters for improved system reliability and easier maintenance.
✅ Construction & Infrastructure: Earthmoving, site preparation, backfilling, and material handling on building sites and road projects.
✅ Quarry & Mining: Loading trucks, stockpiling aggregates, and general material handling in quarry operations.
✅ Material Handling: Loading and moving bulk materials in ports, warehouses, and industrial yards.
✅ Agricultural Applications: Handling grain, feed, and other agricultural materials on farms and storage facilities.
✅ Municipal & Utility Work: Snow removal, waste handling, and general maintenance tasks.
