Product Description

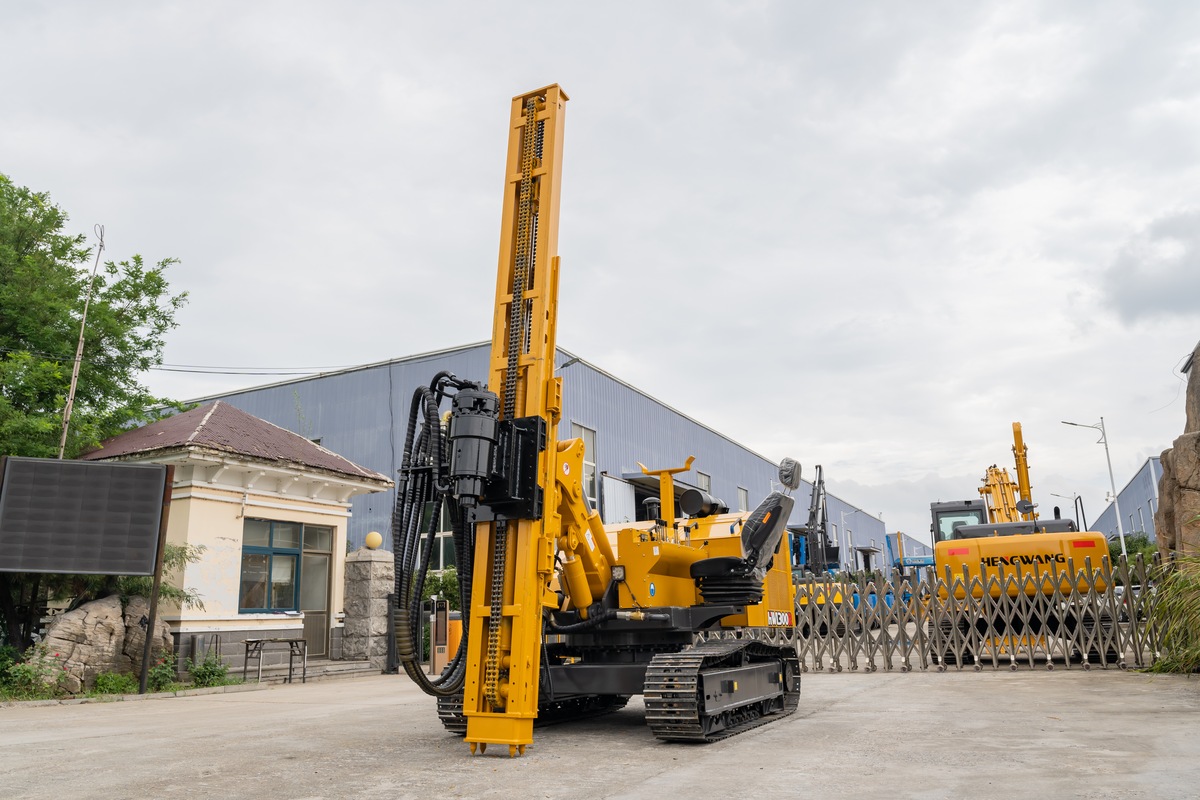

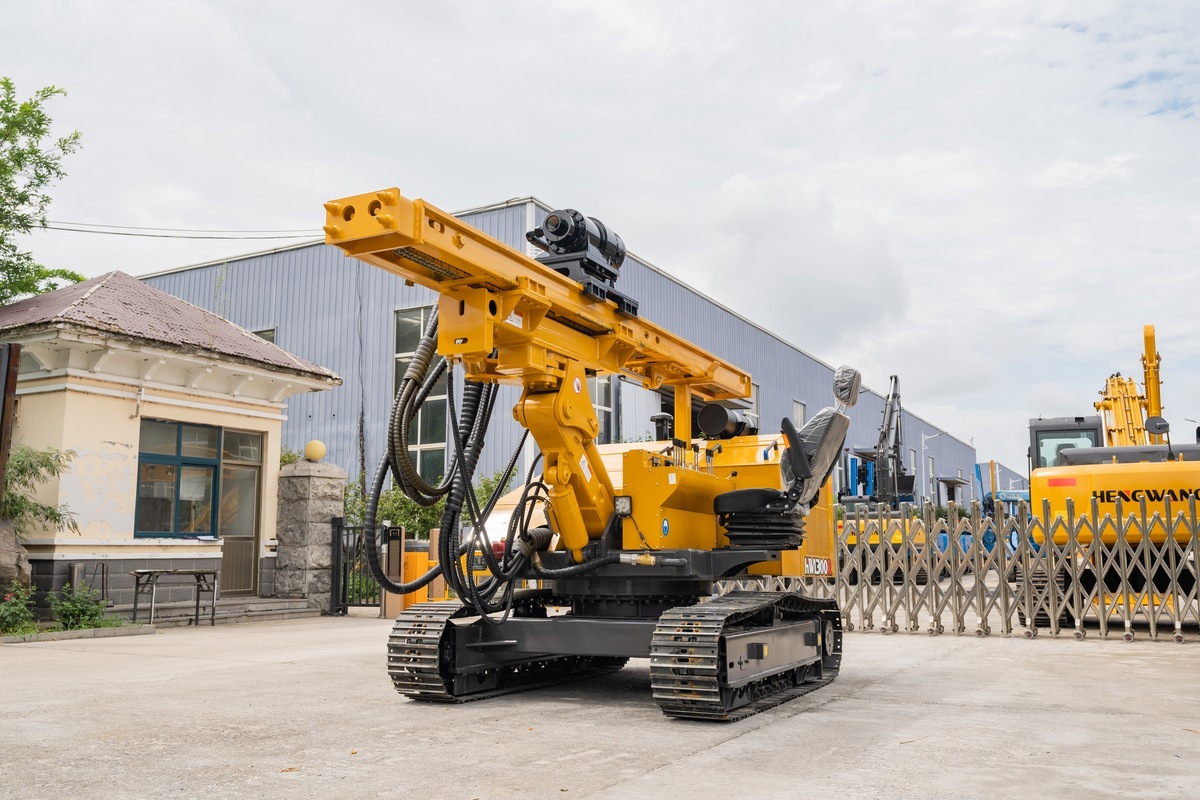

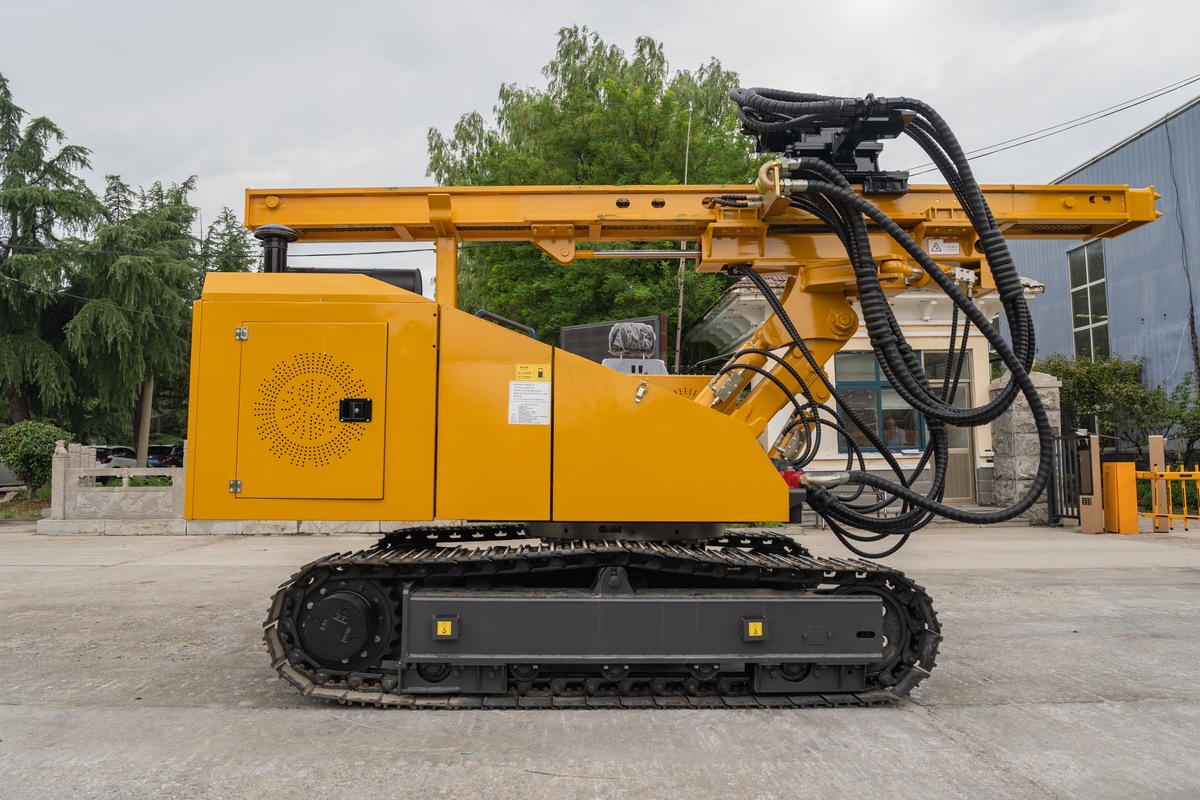

HKL Series Crawler Solar Pile Drivers

The HKL series solar pile drivers are purpose-built to meet the rigorous demands of modern photovoltaic (solar) farm construction. These self-propelled, crawler-mounted machines integrate powerful performance with robust construction to ensure reliable foundation drilling and pile driving in diverse ground conditions.

At the heart of each model is a high-performance diesel engine, available from leading brands Yuchai or Cummins. This powertrain delivers a rated power of 85 kW and a maximum torque of 375 N·m at 1850 rpm, providing the robust and reliable power source necessary for demanding (construction work) while ensuring improved reliability and fuel economy .

The machines feature an advanced hydraulic system that is fundamental to their efficiency and durability. High-quality hydraulic components and strict assembly processes ensure system efficiency and longevity . The system operates at a working pressure of 19 Mpa with a maximum flow of 230 L/min, powered by a 230L hydraulic tank.

All models are equipped with a Model 100 hydraulic hammer delivering a powerful impact force of 1800 Joules at a maximum frequency of 800 Bpm. The mast (slide) (stroke) varies by model—from 3100mm on the HKL300R to 6100mm on the HKL600R—accommodating maximum pile lengths from 3 to 6 meters respectively . The mast can also swing ±15° for precise positioning.

The overall frame structure boasts high strength and excellent stability, fully compliant with national material standards and industrial aesthetics . The operator benefits from a more spacious working environment. Rigorous manufacturing processes, including heat treatment of wear parts and stress-relieving (welding) of the frame, minimize deformation and ensure long-term structural integrity .

With a ground pressure optimized for crawler tracks and a 25° gradeability, the HKL series can navigate and operate effectively on the uneven terrain typical of solar farm sites.

Key Specifications

Design Highlights

🔹 Powerful & Reliable Engine Choice
Equipped with a choice of reputable Yuchai or Cummins diesel engines, delivering 85kW of rated power and 375N·m of torque for consistent, high-performance operation with improved fuel economy.

🔹 Advanced High-Efficiency Hydraulic System
Utilizes high-quality hydraulic components and strict assembly processes to ensure system efficiency, responsiveness, and long-term durability in demanding field conditions.

🔹 Powerful & Consistent Impact Force
All models feature a Model 100 hydraulic hammer delivering a substantial 1800J impact force at up to 800 Bpm, ensuring effective pile driving in various soil types.

🔹 Adjustable Mast for Variable Pile Lengths
The series offers models with slide strokes ranging from 3.1m to 6.1m, specifically designed to handle maximum pile lengths from 3m to 6m, providing flexibility for different project specifications.

🔹 Robust Frame for High Strength & Stability
The整体框架结构 (overall frame structure) boasts high strength and excellent stability, engineered according to national standards and industrial aesthetics. The operator workspace is also designed for enhanced comfort.

🔹 Durable Construction & Manufacturing
Wear parts undergo heat treatment, and the frame welding employs (overall stress relief processing) to minimize deformation and ensure long-lasting structural integrity under heavy use.

🔹 Excellent Terrain Adaptability
With a robust crawler undercarriage and 25° gradeability, the HKL series can reliably traverse and operate on the uneven, sloped, and loose terrain common in solar farm construction sites.

🔹 Precise Mast Positioning
The slide mast can swing ±15°, allowing operators to precisely adjust the angle for accurate pile placement and alignment, even on uneven ground.

🔹 Spacious Operator Workspace
The well-designed frame and layout provide a more spacious and comfortable working environment for the operator, helping to reduce fatigue during long working hours.

Application Scenarios

✅ Solar Photovoltaic (PV) Farm Construction: High-efficiency drilling and driving of foundation piles for solar panel arrays across large-scale solar farms.
✅ Ground-Mounted Solar Projects: Installing support structures for commercial and utility-scale ground-mounted solar systems.
✅ Foundation Work on Slopes & Uneven Terrain: Operating effectively on sloped or uneven ground typical of solar installations in hilly or reclaimed areas.
✅ Fencing & Signage Foundation Installation: Driving posts for perimeter fencing or large signage around solar facilities and other construction sites.
✅ Geotechnical Drilling: Performing foundation drilling for various light construction projects requiring pile installation.
