The FR130F is a 13-ton class, fully Stage IV emissions-compliant hydraulic excavator. It integrates an advanced electronically controlled high-pressure common rail engine with an intelligent hydraulic management system, achieving an excellent balance of power, fuel consumption, and productivity while meeting stringent environmental regulations. Designed for urban construction, farmland water conservancy, municipal landscaping, and general earthmoving, it is the ideal equipment choice for those seeking high efficiency, low-carbon operation, and long-term investment value.

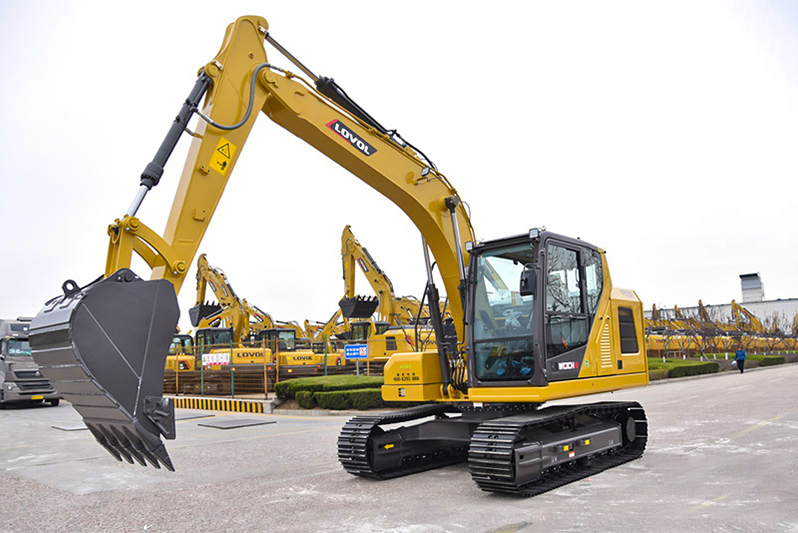

FR130F Stage IV Excavator
| Item | Details |
|---|---|
| Model | FR130F (Stage IV) |
| Operating Weight | Approx. 13,500 kg |
| Engine | High-Pressure Common Rail Turbocharged Diesel (China Stage IV) |
| Rated Power | Approx. 82 kW / 110 HP |
| Bucket Capacity | 0.5 – 0.6 m³ (Optional) |
| Max. Digging Depth | Approx. 5,800 mm |
| Max. Digging Reach | Approx. 8,200 mm |
| Tail Swing Radius | Compact Design |
🔹 Stage IV Eco-Power
Features an advanced electronic engine and aftertreatment system, fully compliant with China’s Stage IV emission standards. Delivers robust power while supporting green, low-carbon operation for present and future regulatory needs.
🔹 Intelligent Electro-Hydraulic System
A load-sensing hydraulic system intelligently allocates flow based on real-time operational demands. Provides precise, responsive control with lower energy consumption and higher working efficiency.
🔹 Robust & Durable Structure
Strengthened working equipment and an X-type frame undercarriage design, with wear-resistant materials at key articulation points, ensure outstanding overall stability and durability for demanding applications.
🔹 Ergonomic Operator Cab
Panoramic-view windows and an optimized interior layout. A suspension seat combined with ergonomically designed control levers minimizes fatigue during long shifts, improving comfort and safety.
🔹 Easy Maintenance Design
Routine service points like engine oil and fuel filters are centrally located for easy access. Extended maintenance intervals significantly reduce daily service time and costs.
✅ Municipal & Pipeline Works: Road repair, pipeline laying, trenching.
✅ Farmland & Water Conservancy: Ditch maintenance, pond excavation, land leveling.
✅ Landscaping: Green belt work, tree transplantation, landscape shaping.
✅ Construction Site Support: Foundation excavation, site clearing, material handling.
✅ Industrial Parks & Logistics Centers: Internal infrastructure building, site maintenance.
