The FL956K is a 5.5-ton class wheel loader engineered for demanding heavy-duty applications. Meeting China Stage IV emission standards, it combines a powerful Weichai WP10H engine with a reinforced drive axle and optimized hydraulic system, delivering exceptional reliability, fuel efficiency, and productivity in the toughest working conditions .

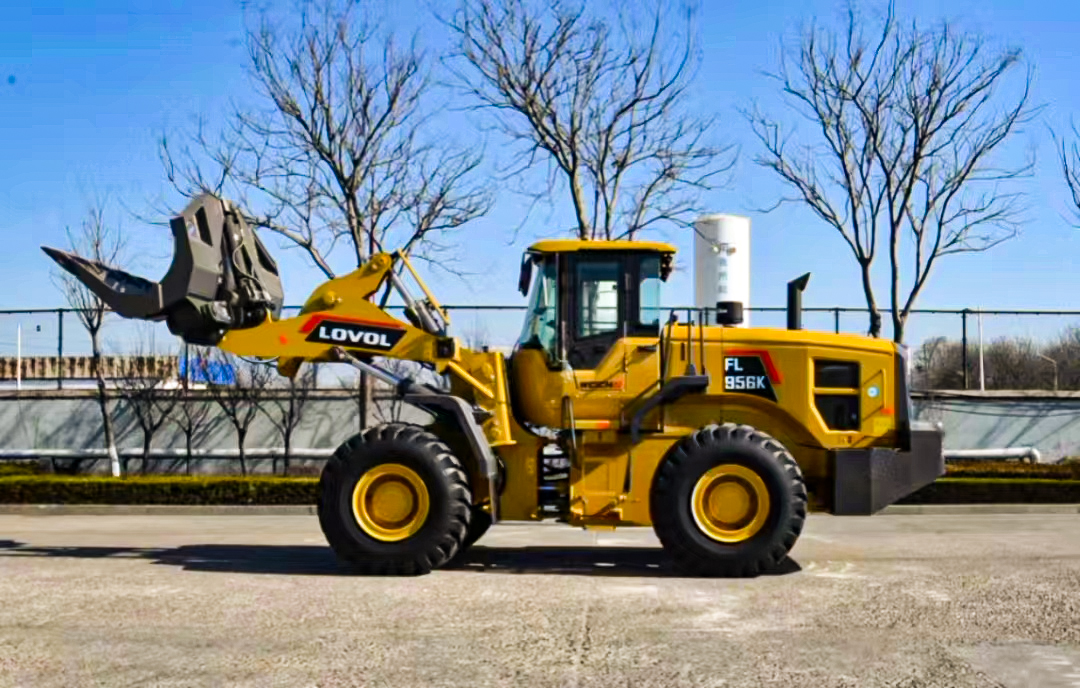

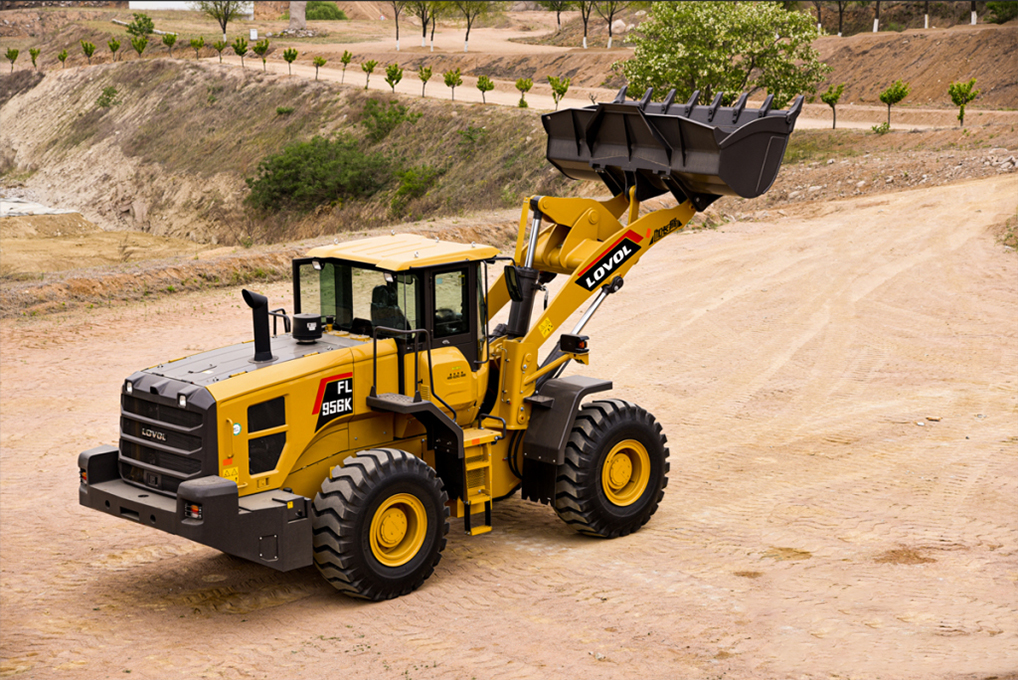

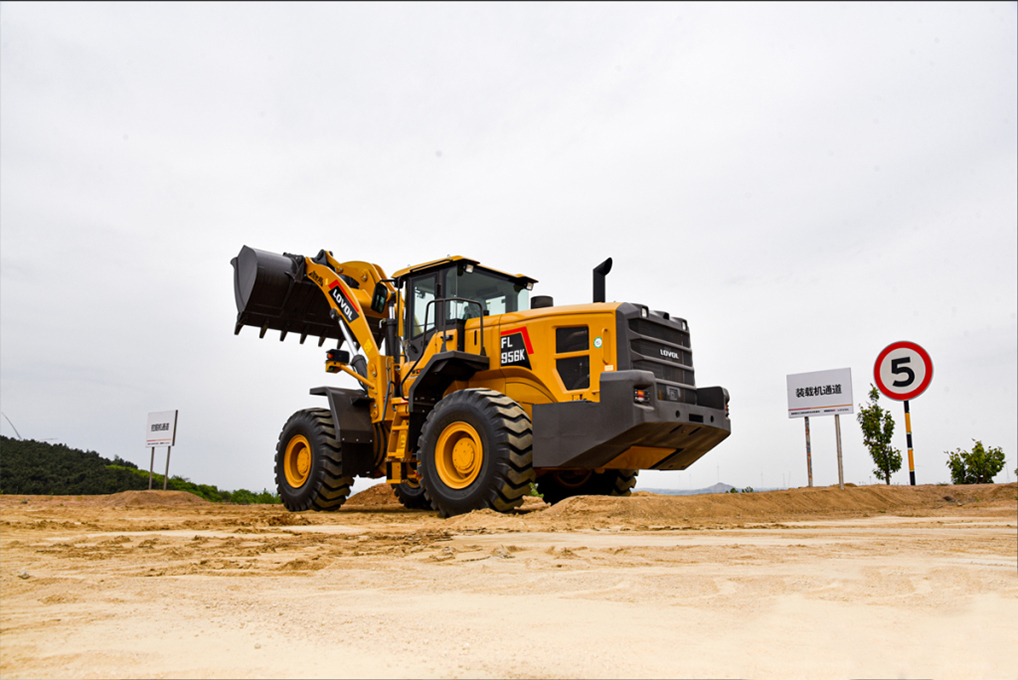

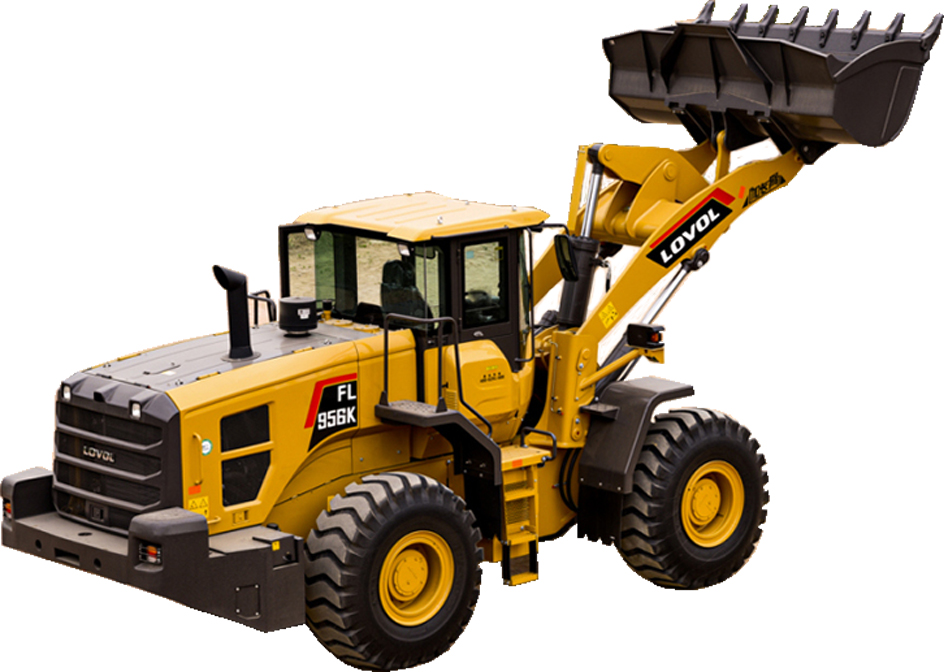

FL956K Stage IV Wheel Loader
The FL956K is positioned as a “Heavy-Duty Expert” designed to excel in challenging environments such as steel mills, quarries, and mining operations . At its core is the new-generation Weichai WP10H engine, featuring high-pressure common rail technology that delivers strong power output while ensuring excellent fuel economy . The engine is equipped with a multi-stage air filter system specifically designed for harsh environments, effectively reducing the risk of early engine wear .
The machine features a reinforced drive axle with upgraded main reduction assembly, wheel ends, and housing, extending overall service life by 50% in heavy-load applications . The hydraulic system incorporates high-precision filters with a filtration ratio of 200 (99.5% impurity removal), ensuring system cleanliness and higher reliability . The optimized linkage geometry delivers exceptional breakout force and fast cycle times, while the specially designed bucket profile reduces insertion resistance and improves fill factor .
| Parameter | Specification |
|---|---|
| Model | FL956K (China Stage IV) |
| Operating Weight | 17,500 kg |
| Engine | Weichai WP10H, Stage IV Compliant |
| Rated Power | 162 kW / 2000 rpm |
| Bucket Capacity | 3.3 m³ |
| Rated Load | 5,500 kg |
| Max. Dump Height (45°) | 3,380 mm |
| Breakout Force | 165 kN |
| Three-in-One Cycle Time | 9.6 s |
| Max. Travel Speed | 42 km/h |
🔹 Powerful & Fuel-Efficient Stage IV Engine
Equipped with the new-generation Weichai WP10H engine featuring high-pressure common rail technology. The engine delivers strong power output while achieving excellent fuel economy through optimized matching with the torque converter and hydraulic system .
🔹 Reinforced Drive Axle for Heavy-Duty Applications
The strengthened drive axle features upgraded main reduction assembly, wheel ends, and housing, providing exceptional reliability in heavy-load conditions and extending overall service life by 50% .
🔹 Optimized Hydraulic System for Higher Productivity
High-precision hydraulic filters with a filtration ratio of 200 (99.5% impurity removal) ensure system cleanliness and reliability. The efficient linkage mechanism delivers powerful breakout force, fast cycle times, and superior lifting capacity .
🔹 Superior Operator Comfort & Safety
The fully enclosed, ROPS/FOPS certified cab features a high-back mechanical suspension seat to reduce operator fatigue . Electronic parking brake enhances operational convenience . The cab provides low noise levels and excellent visibility for safe operation.
🔹 Easy Maintenance & Serviceability
The engine hood features large side doors and an upward-opening design for easy access . “One-stop” maintenance points for engine air filter, fuel filter, and transmission filter simplify daily checks . The single-layer parallel-flow radiator is designed to resist clogging and is easy to clean .
🔹 Intelligent Monitoring System
Features a 4.3-inch color LCD display combined with four analog gauges and 25 indicator lights . The system includes engine fault display and data query functions, with button panel enabling intuitive human-machine interaction .
✅ Construction & Infrastructure: Earthmoving, site preparation, backfilling, and material handling on building sites and road projects.
✅ Quarry & Mining: Loading trucks, stockpiling aggregates, and general material handling in mining operations.
✅ Steel Mills & Heavy Industry: Handling iron ore, slag, and other heavy materials in harsh, dusty environments .
✅ Port & Material Handling: Loading and moving bulk materials in ports, warehouses, and industrial yards.
✅ Heavy-Duty Earthmoving: Large-scale excavation and material movement in demanding conditions.
