The CPD30L1S (3-ton) and CPD35L1S (3.5-ton) are advanced lithium-ion battery counterbalance forklifts engineered for high-performance material handling. Combining zero emissions, rapid charging capability, and low total cost of ownership, they deliver exceptional efficiency for warehouse, logistics, and light industrial applications. With compact design, intelligent controls, and operator-focused ergonomics, these forklifts represent the future of sustainable material handling.

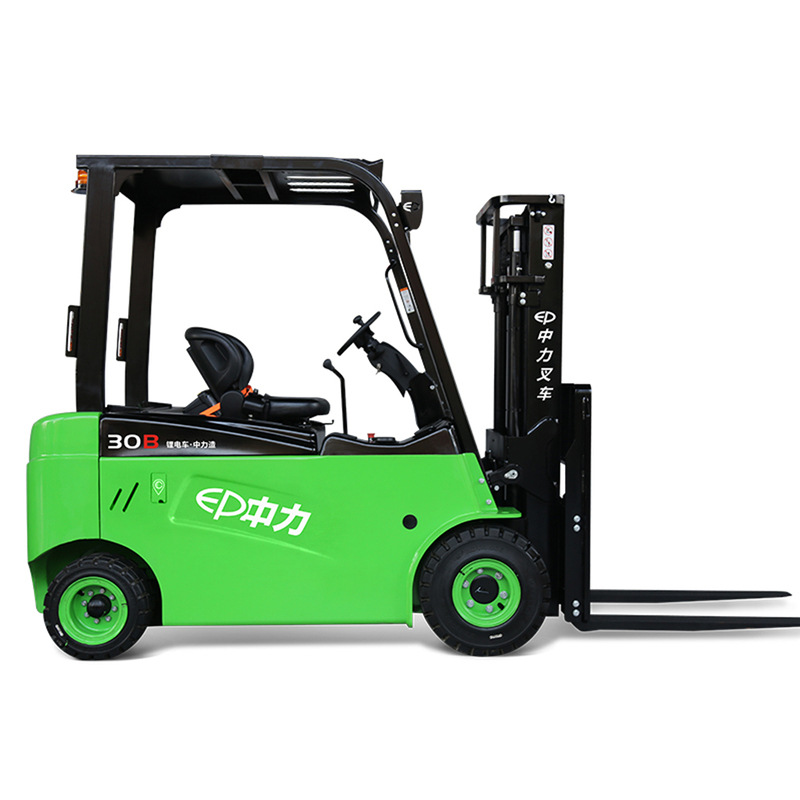

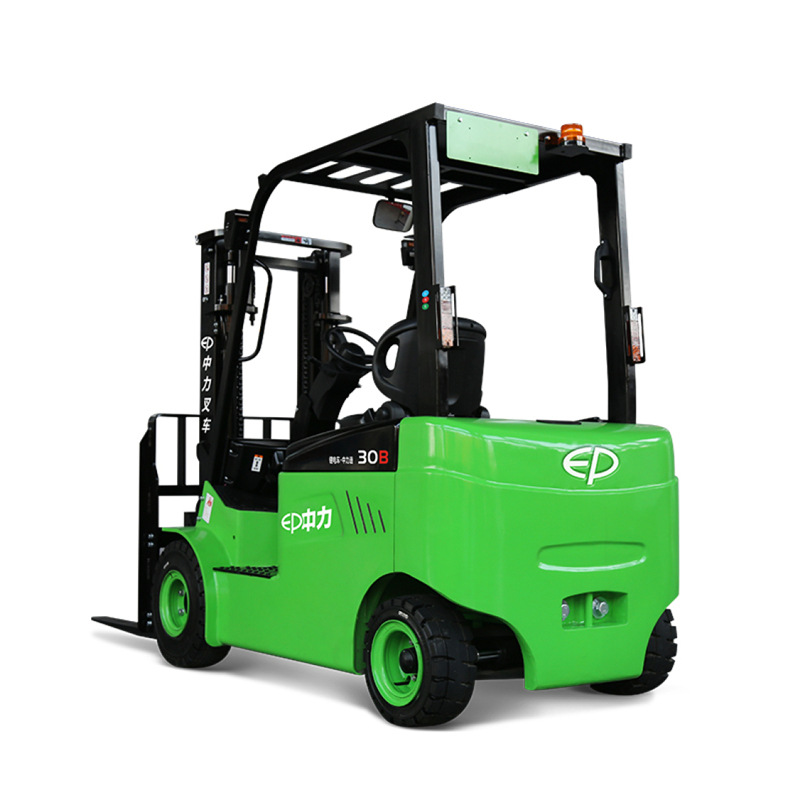

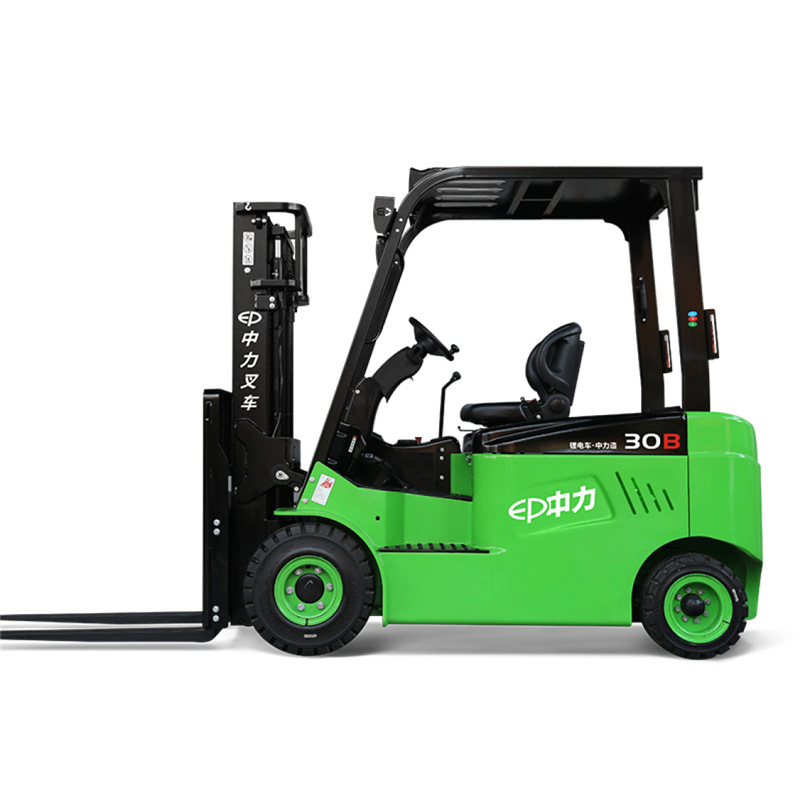

Equipment CPD30L1S / CPD35L1S Electric Forklift
The CPD30L1S and CPD35L1S are part new generation of lithium-ion powered counterbalance forklifts, designed to meet the growing demand for clean, efficient, and cost-effective material handling solutions. At their core is a high-energy-density lithium iron phosphate (LiFePO4) battery pack offering numerous advantages over traditional lead-acid batteries: no maintenance, no acid fumes, opportunity charging capability, and longer overall lifespan.
The AC traction and hydraulic systems deliver smooth acceleration, precise control, and regenerative braking that recovers energy during deceleration, extending runtime between charges. The dual-drive motor configuration provides excellent torque for ramp climbing and heavy loads while maintaining compact dimensions for maneuverability in tight spaces.
The intelligent CAN-bus control system continuously monitors vehicle performance, battery status, and operator inputs to optimize efficiency and safety. The multifunction display provides real-time data including speed, battery level, service reminders, and fault diagnostics.
Operator comfort and safety are paramount. The ergonomically designed operator compartment features ample legroom, low step-in height, adjustable steering column, and suspension seat to reduce fatigue during long shifts. The wide-view mast and optimized overhead guard provide excellent visibility to the forks and surroundings. The OMNI WHEEL™ (on selected models) enables effortless maneuvering in confined aisles.
The robust counterbalance design ensures stability during heavy lifts, while the fully sealed drivetrain components protect against dust and moisture ingress, ensuring reliable performance even in demanding environments.
| Parameter | CPD30L1S | CPD35L1S |
|---|---|---|
| Rated Load Capacity | 3,000 kg | 3,500 kg |
| Load Center Distance | 500 mm | 500 mm |
| Battery Type | Lithium-Ion (LiFePO₄) | Lithium-Ion (LiFePO₄) |
| Battery Voltage / Capacity | 80V / 270-404 Ah | 80V / 270-404 Ah |
| Drive Motor Power | 15 kW (AC) | 15 kW (AC) |
| Hydraulic Motor Power | 13 kW (AC) | 13 kW (AC) |
| Lift Speed (Loaded) | 320 mm/s | 280 mm/s |
| Travel Speed (Loaded) | 14 km/h | 14 km/h |
| Max. Gradeability (Loaded) | 18% | 18% |
| Overall Length (to face of forks) | 2,600 mm | 2,650 mm |
| Overall Width | 1,240 mm | 1,240 mm |
| Turning Radius (Outside) | 2,120 mm | 2,200 mm |
| Service Weight (incl. battery) | 4,700 kg | 5,000 kg |
| Mast Type | Standard / Wide View | Standard / Wide View |
| Standard Lift Height | 3,000 mm | 3,000 mm |
| Free Lift | 150 mm | 150 mm |
🔹 Advanced Lithium-Ion Battery Technology
High-energy-density LiFePO₄ battery delivers zero emissions, zero maintenance, and 3x longer cycle life than traditional lead-acid. Opportunity charging capability (charging during breaks) enables 24/7 operation with a single battery.
🔹 Fast Charging for Maximum Uptime
Full charge in 1-2 hours (depending on charger) vs. 8+ hours for lead-acid. No need for battery changing stations or spare batteries—simply plug in during lunch or breaks.
🔹 AC Drive & Hydraulic Motors
High-efficiency AC motors provide smooth acceleration, precise control, and regenerative braking that recovers energy during deceleration, extending runtime by up to 20%.
🔹 Intelligent CAN-Bus Control System
Advanced controller continuously monitors performance, optimizing energy consumption and enabling customizable performance parameters. Built-in diagnostics simplify troubleshooting.
🔹 Ergonomic Operator Compartment
Low step-in height, ample legroom, adjustable steering column, and suspension seat reduce operator fatigue. Intuitive controls with multifunction display keep operators comfortable and informed.
🔹 Excellent Visibility
Wide-view mast design and optimized overhead guard geometry provide exceptional sightlines to fork tips and surroundings, enhancing safety during precise maneuvers.
🔹 Compact & Maneuverable
Small turning radius and compact dimensions enable efficient operation in narrow aisles and congested spaces. OMNI WHEEL™ option (if equipped) allows effortless sideways movement.
🔹 Robust & Durable Construction
Heavy-duty counterbalance design, sealed drivetrain components, and corrosion-resistant paint ensure reliable performance in demanding industrial environments.
🔹 Low Total Cost of Ownership
No battery maintenance, no acid spills, no watering, and no forced battery changes. Energy costs up to 30% lower than lead-acid. Longer overall vehicle and battery lifespan.
🔹 Regenerative Braking System
Captures energy during deceleration and returns it to the battery, extending runtime and reducing brake wear for lower maintenance costs.

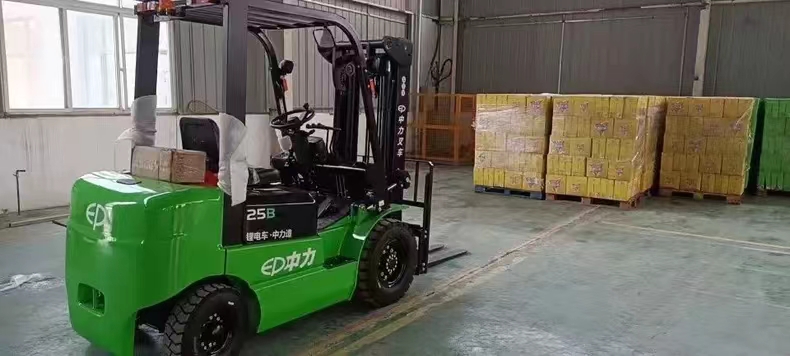

✅ Warehouse & Distribution Centers: Pallet handling, order picking, loading/unloading trucks in high-throughput logistics operations.
✅ Manufacturing Facilities: Supplying production lines, moving raw materials, and handling finished goods in factories.
✅ Cold Storage & Food Processing: Lithium battery performs exceptionally well in low temperatures; sealed components withstand frequent washdowns.
✅ Retail & Wholesale: Stocking shelves, receiving shipments, and organizing back-of-store inventory.
✅ Ports & Container Depots: Container stuffing/stripping and cargo handling in intermodal facilities.
✅ Automotive Industry: Parts handling, assembly line supply, and vehicle movement in manufacturing plants.
✅ Pharmaceutical & Cleanrooms: Zero emissions and no acid fumes make these forklifts ideal for sensitive environments.
✅ Beverage Industry: Handling pallets of bottles and cans in high-volume distribution centers.
